FDA903Q-V0Y - STMicroelectronics

Description: 1 CH class D digital input automotive power amplifier with diagnostics, load current monitoring wide voltage operation range for car audio and telematic

Download FDA903Q-V0Y Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

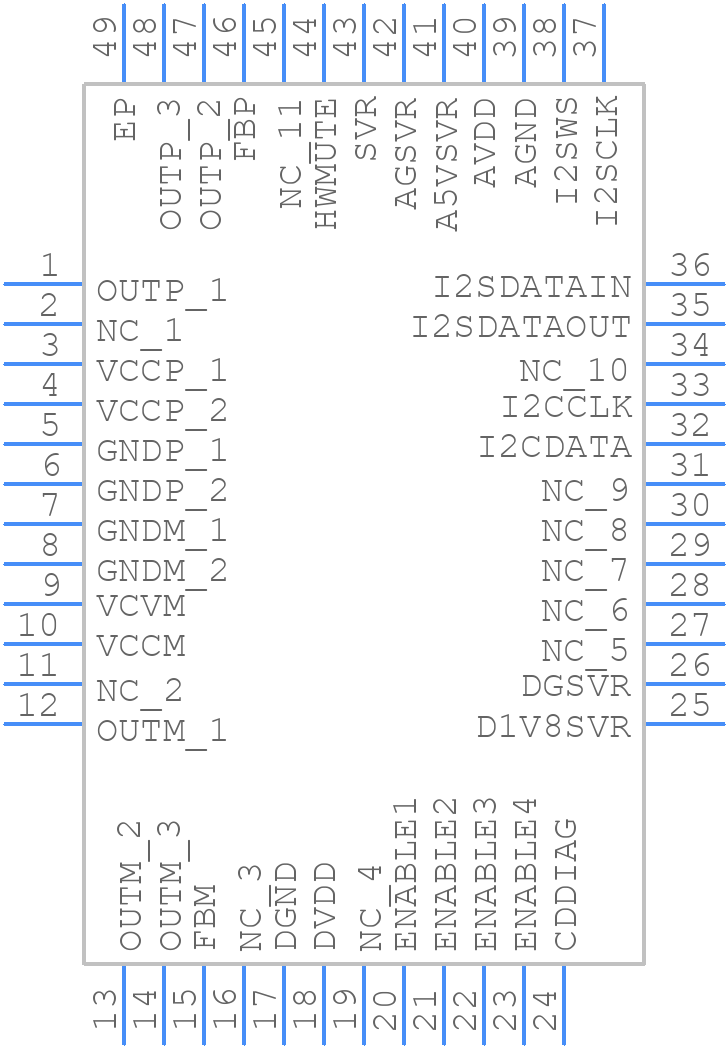

FDA903Q-V0Y - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
FDA903Q-V0Y - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN 48 7x7x1.0mm
click to zoom
3D Models
FDA903Q-V0Y - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN 48 7x7x1.0mm
click to zoom

FDA903Q-V0Y Details

  • Manufacturer Part Number:

    FDA903Q-V0Y

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFQFPN-48

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.05 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

FDA903Q-V0Y Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4965, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The selection of output filter components (L, C, and R) depends on the specific application requirements, such as output voltage, current, and ripple. STMicroelectronics provides a filter design tool and guidelines in the application note AN4965 to help engineers select the correct components.
  • The maximum junction temperature (Tj) for the FDA903Q-V0Y is 150°C. Operating the device above this temperature can reduce its reliability and lifespan. Engineers should ensure proper thermal management, such as heat sinking and airflow, to keep the junction temperature within the recommended range.
  • The FDA903Q-V0Y has built-in OCP and SCP features. Engineers can implement these features by connecting the OCP and SCP pins to the input voltage and configuring the threshold values according to the application requirements. STMicroelectronics provides guidelines and examples in the datasheet and application notes.
  • The recommended input capacitor type is a low-ESR ceramic capacitor (X5R or X7R) with a value between 4.7 μF and 10 μF. The input capacitor helps to filter the input voltage and reduce ripple. STMicroelectronics provides guidelines for input capacitor selection in the application note AN4965.
