Description:1 x 45 W class D digital input automotive power amplifier with ILoad current monitoring, wide voltage operation range for car audio and telematic
STMicroelectronics provides a recommended PCB layout in the application note AN4841, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The FDA903U-KBT is a highly configurable device, and STMicroelectronics provides a software development kit (SDK) that includes a configuration tool and example code for various audio applications, such as audio amplifiers, audio codecs, and audio processing algorithms.
The maximum power dissipation of the FDA903U-KBT is 2.5W, and thermal management is critical to ensure reliable operation. STMicroelectronics recommends using a thermal pad on the exposed pad of the device, and providing adequate heat sinking and airflow to keep the junction temperature below 150°C.
STMicroelectronics provides a troubleshooting guide in the application note AN4842, which covers common issues and their solutions, including audio distortion, noise, and clocking issues. Additionally, the device has built-in diagnostic features, such as a fault detection register, to help identify and debug issues.
Yes, the FDA903U-KBT is designed to meet the requirements of automotive and industrial applications, including operating temperature range, electromagnetic compatibility (EMC), and reliability. STMicroelectronics provides additional documentation and support for these applications, including AEC-Q100 qualification and IEC 60730 compliance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FDA903U-KBT Overview

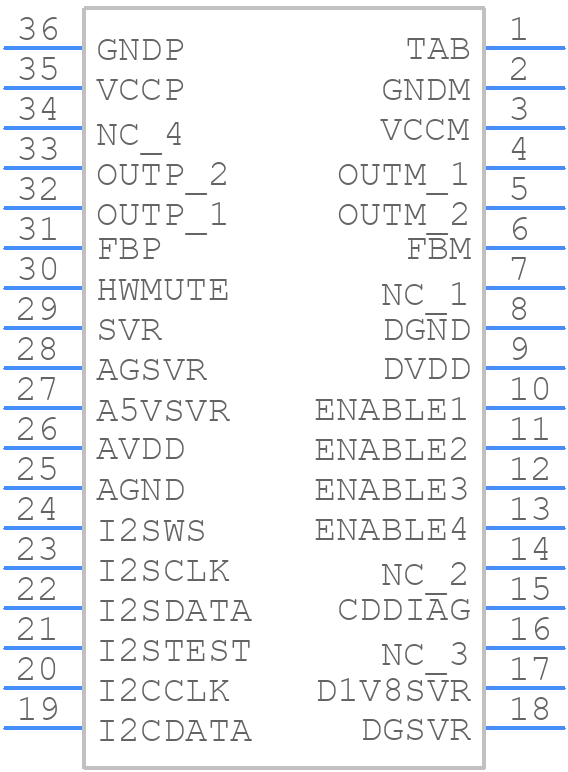

Use the download button to access the FDA903U-KBT schematic symbol, PCB footprint, and 3D model.
