FDB0105N407L - onsemi

Description: High Power and Current Handling Capability ; Low Gate Charge ; Max rDS(on) = 1.1 mΩ at VGS = 6 V, ID = 42 A ; High Performance Trench Technology for Extremely Low RDS(on) ; RoHS Compliant ; Fast Switching Speed ; Max rDS(on) = 0.8 mΩ at VGS = 10 V, ID = 50 A

Download FDB0105N407L Model

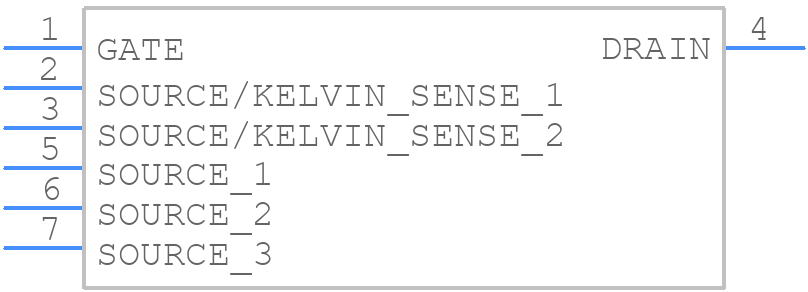

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FDB0105N407L - onsemi PCB footprint - Other - Other - FDB0190N807L-2
click to zoom
3D Models
FDB0105N407L - onsemi  - 3D model - Other - FDB0190N807L-2
click to zoom

FDB0105N407L Details

  • Manufacturer Part Number:

    FDB0105N407L

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    D2PAK-7 / TO-263-7

  • Package Description:

    D2PAK-7/6

  • Manufacturer Package Code:

    418AY

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Avalanche Energy Rating (Eas):

    1109 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    460 A

  • Drain-source On Resistance-Max:

    0.0008 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    1365 pF

  • JEDEC-95 Code:

    TO-263CB

  • JESD-30 Code:

    R-PSSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    300 W

  • Pulsed Drain Current-Max (IDM):

    2540 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    283 ns

  • Turn-on Time-Max (ton):

    183 ns

FDB0105N407L Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the FDB0105N407L is -55°C to 150°C.
  • To ensure proper biasing, the FDB0105N407L requires a minimum of 5V on the gate-source voltage (Vgs) and a maximum of 20V on the drain-source voltage (Vds).
  • For optimal thermal performance, it is recommended to use a multi-layer PCB with a thermal pad connected to a heat sink or a thermal interface material. A minimum of 2 oz copper thickness is recommended for the PCB.
  • To protect the FDB0105N407L from ESD, it is recommended to use an ESD wrist strap or mat, and to handle the device in an ESD-controlled environment. The device should also be stored in an anti-static bag or tube.
  • The maximum current rating for the FDB0105N407L is 10A.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FDB0105N407L Overview

Use the download button to access the FDB0105N407L schematic symbol, PCB footprint, and 3D model.
