FDB0170N607L - onsemi

Description: High Power and Current Handling Capability ; RoHS Compliant ; High Performance Trench Technology for Extremely Low RDS(on) ; Max rDS(on) = 1.4 mΩ at VGS = 10 V, ID = 39 A ; Low Gate Charge ; Fast Switching Speed

Download FDB0170N607L Model

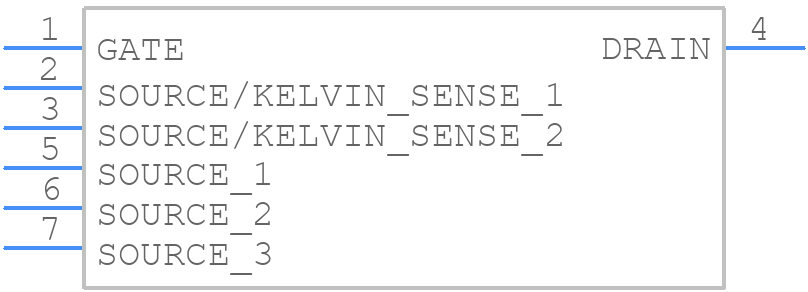

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FDB0170N607L - onsemi PCB footprint - Other - Other - FDB0170N607L-3
click to zoom

FDB0170N607L Details

  • Manufacturer Part Number:

    FDB0170N607L

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    D2PAK-7 / TO-263-7

  • Package Description:

    D2PAK-7/6

  • Manufacturer Package Code:

    418AY

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.6

  • Avalanche Energy Rating (Eas):

    1109 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    300 A

  • Drain-source On Resistance-Max:

    0.0014 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    340 pF

  • JEDEC-95 Code:

    TO-263CB

  • JESD-30 Code:

    R-PSSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    250 W

  • Pulsed Drain Current-Max (IDM):

    1620 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    193 ns

  • Turn-on Time-Max (ton):

    200 ns

FDB0170N607L Frequently Asked Questions (FAQs)

  • A 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer is recommended. This helps to dissipate heat efficiently and reduces thermal resistance.
  • Ensure that the device is operated within the recommended temperature range (TJ = -40°C to 150°C). Use a heat sink or thermal interface material to reduce thermal resistance. Also, ensure good airflow and avoid thermal hotspots.
  • The maximum allowed voltage on the gate pin is ±20V. Exceeding this voltage may damage the device.
  • Use ESD protection devices such as TVS diodes or ESD suppressors on the input and output pins. Handle the device by the body or use an anti-static wrist strap to prevent ESD damage.
  • A gate drive voltage of 10-15V is recommended for optimal switching performance. This ensures fast switching times and minimizes power losses.
