FDB024N08BL7 - onsemi

Description: N-Channel 80 V 120A (Tc) 246W (Tc) Surface Mount TO-263-7

Download FDB024N08BL7 Model

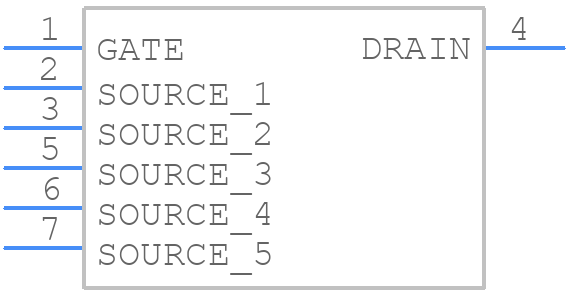

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FDB024N08BL7 - onsemi PCB footprint - Other - Other - D2PAK7 (TO−263 7 LD) CASE 418AY ISSUE C_2025
click to zoom
3D Models
FDB024N08BL7 - onsemi  - 3D model - Other - D2PAK7 (TO−263 7 LD) CASE 418AY ISSUE C_2025
click to zoom

FDB024N08BL7 Details

  • Manufacturer Part Number:

    FDB024N08BL7

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    D2PAK-7 / TO-263-7

  • Package Description:

    D2PAK-7/6

  • Manufacturer Package Code:

    418AY

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.9

  • Avalanche Energy Rating (Eas):

    917 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    80 V

  • Drain Current-Max (ID):

    120 A

  • Drain-source On Resistance-Max:

    0.0024 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-263CB

  • JESD-30 Code:

    R-PSSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    246 W

  • Pulsed Drain Current-Max (IDM):

    916 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

FDB024N08BL7 Frequently Asked Questions (FAQs)

  • The maximum junction temperature (Tj) for the FDB024N08BL7 is 150°C. Exceeding this temperature can lead to device failure.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of 10°C/W or lower, and ensuring good airflow around the device. Additionally, the PCB design should allow for good thermal conduction and radiation.
  • The recommended gate drive voltage for the FDB024N08BL7 is between 10V and 15V. This ensures proper switching and minimizes power losses.
  • Yes, the FDB024N08BL7 is suitable for high-frequency switching applications up to 100 kHz. However, the user should ensure that the device is properly cooled and the PCB design is optimized for high-frequency operation.
  • To protect the FDB024N08BL7 from overvoltage and overcurrent, use a voltage clamp or a transient voltage suppressor (TVS) to limit the voltage, and a current sense resistor or a fuse to detect and respond to overcurrent conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FDB024N08BL7 Overview

Use the download button to access the FDB024N08BL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FDB02, or try a keyword search, such as Power Field-Effect Transistors
