FDB0260N1007L - onsemi

Description: High Performance Trench Technology for Extremely Low RDS(on) ; Max rDS(on) = 2.6 mΩ at VGS = 10 V, ID = 27 A ; Low Gate Charge ; RoHS Compliant ; High Power and Current Handling Capability ; Fast Switching Speed

Download FDB0260N1007L Model

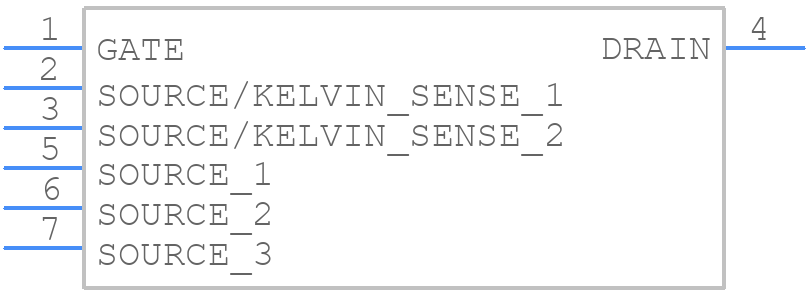

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FDB0260N1007L - onsemi PCB footprint - Other - Other - FDB0260N1007L-2
click to zoom

FDB0260N1007L Details

  • Manufacturer Part Number:

    FDB0260N1007L

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    D2PAK-7 / TO-263-7

  • Package Description:

    D2PAK-7/6

  • Manufacturer Package Code:

    418AY

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.9

  • Avalanche Energy Rating (Eas):

    912 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    200 A

  • Drain-source On Resistance-Max:

    0.0026 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    65 pF

  • JEDEC-95 Code:

    TO-263CB

  • JESD-30 Code:

    R-PSSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    250 W

  • Pulsed Drain Current-Max (IDM):

    1100 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    115 ns

  • Turn-on Time-Max (ton):

    94 ns

FDB0260N1007L Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for FDB0260N1007L is a 2.5mm x 2.5mm pad with a 1.5mm x 1.5mm thermal pad in the center, and a 0.5mm keep-out zone around the device.
  • To ensure reliable operation of FDB0260N1007L in high-temperature environments, it is recommended to follow proper thermal design and layout guidelines, including providing adequate heat sinking and thermal management.
  • The maximum allowed voltage on the gate of FDB0260N1007L is 20V, and it is recommended to keep the gate voltage between 0V and 15V for reliable operation.
