FDB035N10A - onsemi

FDB035N10A Details

• Manufacturer Part Number:

  FDB035N10A

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

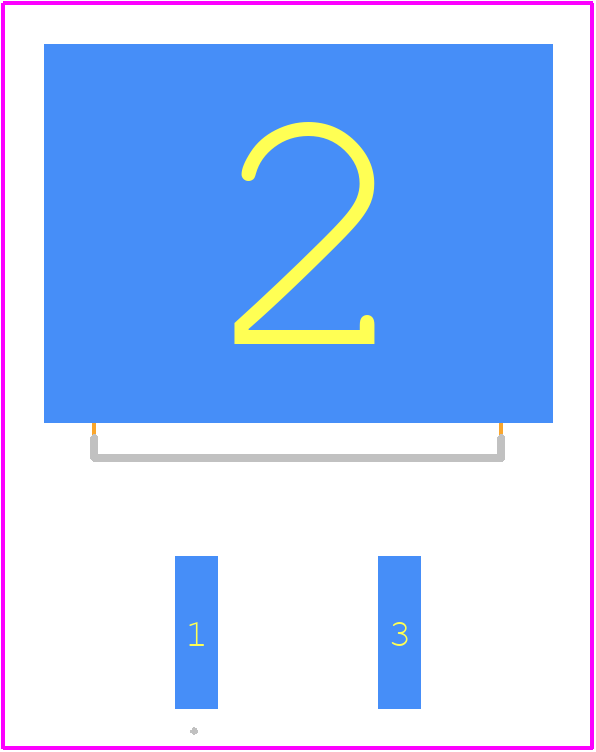

• Part Package Code:

  D2PAK-3 / TO-263-2

• Package Description:

  D2PAK-3/2

• Manufacturer Package Code:

  418AJ

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• Manufacturer:

  onsemi

• YTEOL:

  5.9

• Additional Feature:

  ULTRA-LOW RESISTANCE

• Avalanche Energy Rating (Eas):

  558 mJ

• Case Connection:

  DRAIN

• Configuration:

  SINGLE WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  100 V

• Drain Current-Max (ID):

  120 A

• Drain-source On Resistance-Max:

  0.0035 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• Feedback Cap-Max (Crss):

  210 pF

• JEDEC-95 Code:

  TO-263AB

• JESD-30 Code:

  R-PSSO-G2

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Number of Elements:

  1

• Number of Terminals:

  2

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  175 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  245

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  333 W

• Pulsed Drain Current-Max (IDM):

  704 A

• Qualification Status:

  Not Qualified

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  30

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
