The maximum junction temperature of the FDBL0110N60 is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C for reliable operation and to prevent thermal runaway.
To ensure proper cooling, a heat sink with a thermal resistance of less than 1°C/W is recommended. The heat sink should be attached to the device using a thermal interface material with a thermal conductivity of at least 1 W/m-K. Additionally, ensure good airflow around the heat sink to dissipate heat efficiently.
The recommended gate drive voltage for the FDBL0110N60 is between 10V and 15V. A higher gate drive voltage can reduce switching losses, but may also increase the risk of gate oxide breakdown. A lower gate drive voltage can reduce the risk of gate oxide breakdown, but may increase switching losses.
To protect the FDBL0110N60 from overvoltage, use a voltage clamp or a transient voltage suppressor (TVS) diode to limit the voltage across the device. For overcurrent protection, use a current sense resistor and a comparator to detect overcurrent conditions, and then shut down the device or reduce the current using a current limiter.
For optimal performance and to minimize electromagnetic interference (EMI), use a 4-layer PCB with a solid ground plane and a separate power plane. Keep the high-frequency loops small and use a Kelvin connection for the gate drive. Use a decoupling capacitor with a low equivalent series resistance (ESR) to filter the power supply.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FDBL0110N60 Overview

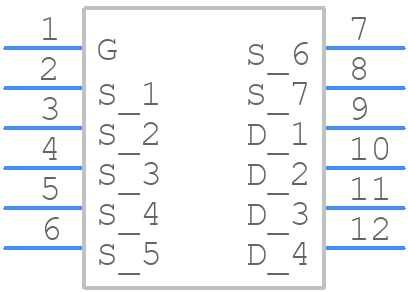

Use the download button to access the FDBL0110N60 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FDBL0,
or try a keyword search, such as Power Field-Effect Transistors
