The maximum junction temperature for the FDBL0150N80 is 150°C. However, it's recommended to operate the device at a temperature below 125°C for optimal performance and reliability.
To ensure proper cooling, it's essential to provide a good thermal interface between the device and the heat sink. Apply a thin layer of thermal interface material, and ensure the heat sink is properly mounted and secured. Additionally, ensure good airflow around the heat sink to dissipate heat efficiently.
The recommended gate drive voltage for the FDBL0150N80 is between 10V and 15V. However, the optimal gate drive voltage may vary depending on the specific application and switching frequency. It's recommended to consult the application note or contact onsemi support for more information.
Yes, the FDBL0150N80 can be used in a parallel configuration to increase the current handling capability. However, it's essential to ensure that the devices are properly matched, and the gate drive signals are synchronized to prevent uneven current sharing.
The recommended dead time for the FDBL0150N80 depends on the specific application and switching frequency. As a general guideline, a dead time of 100-200 ns is recommended. However, it's recommended to consult the application note or contact onsemi support for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FDBL0150N80 Overview

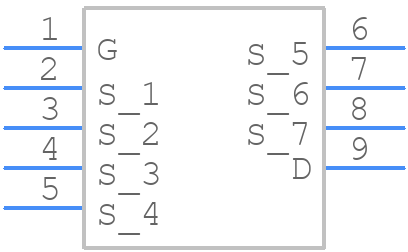

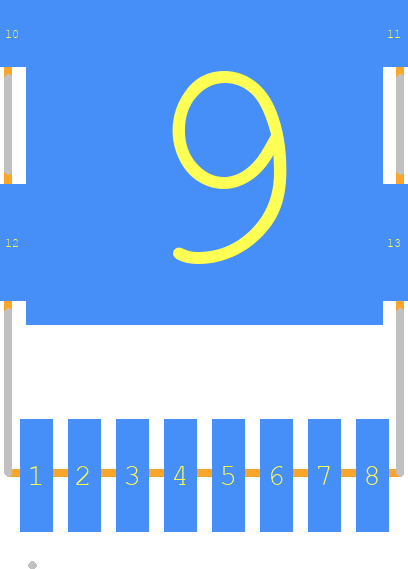

Use the download button to access the FDBL0150N80 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FDBL0,
or try a keyword search, such as Power Field-Effect Transistors
