FDBL86363-F085 - onsemi

Description: Low RDS(on); Low QG and Capacitance; AEC Q101 - Qualified and PPAP Capable; RoHS Compliant

Download FDBL86363-F085 Model

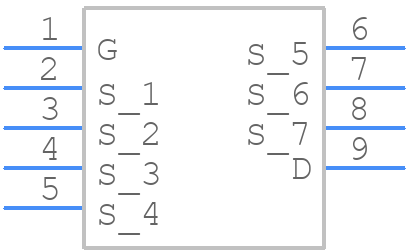

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

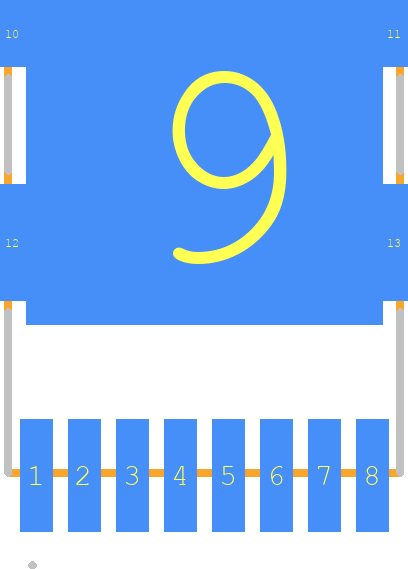

FDBL86363-F085 - onsemi PCB footprint - Other - Other - H−PSOF8L 11.68x9.80 CASE 100CU ISSUE O
click to zoom
3D Models
FDBL86363-F085 - onsemi  - 3D model - Other - H−PSOF8L 11.68x9.80 CASE 100CU ISSUE O
click to zoom

FDBL86363-F085 Details

  • Manufacturer Part Number:

    FDBL86363-F085

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TO-LL 8L

  • Manufacturer Package Code:

    100CU

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.9

  • Avalanche Energy Rating (Eas):

    512 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    80 V

  • Drain Current-Max (ID):

    240 A

  • Drain-source On Resistance-Max:

    0.002 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    70 pF

  • JEDEC-95 Code:

    MO-299A

  • JESD-30 Code:

    R-PSSO-F2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    357 W

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    140 ns

  • Turn-on Time-Max (ton):

    133 ns

FDBL86363-F085 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
  • Ensure the input voltage (VIN) is within the recommended range (4.5V to 18V). Use a stable voltage regulator and decoupling capacitors (e.g., 10uF and 100nF) to minimize noise and ripple.
  • The maximum allowed current through the output pins is 1.5A per pin. Ensure the total current drawn does not exceed the device's maximum current rating (3A).
  • Use a TVS diode or a zener diode to protect against overvoltage. Implement overcurrent protection using a fuse or a current-sensing resistor with a comparator or a dedicated overcurrent protection IC.
  • The recommended operating temperature range is -40°C to 125°C. Ensure proper thermal management and heat sinking to maintain a safe junction temperature (TJ) below 150°C.
