A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
Implement a robust thermal management system, ensure proper PCB layout, and follow the recommended operating conditions. Also, consider using a thermistor or thermocouple to monitor the device temperature.
Monitor the device's temperature, voltage, and current. Implement over-temperature protection (OTP), over-voltage protection (OVP), and over-current protection (OCP) to prevent damage and ensure reliable operation.
Consult the application note and reference design provided by onsemi. Optimize the PCB layout, component selection, and thermal management system for your specific use case.
Follow the recommended soldering temperature profile and assembly guidelines provided in the datasheet. Ensure proper handling and storage of the device to prevent damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FDBL86566_F085 Overview

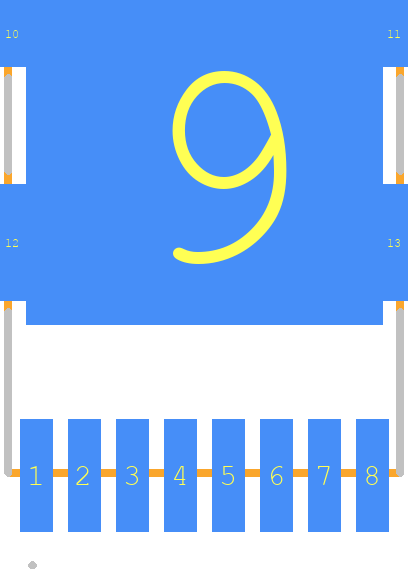

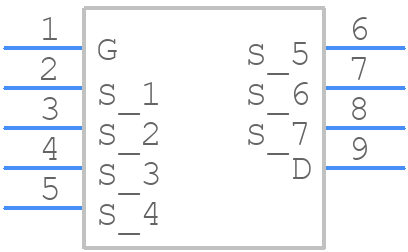

Use the download button to access the FDBL86566_F085 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FDBL8,
or try a keyword search, such as Power Field-Effect Transistors
