FDC2114QRGHRQ1 - Texas Instruments

Description: Sensor and Detector Interface 3.6V 2.1mA I2C Interface Automotive 16-Pin WQFN EP T/R

Download FDC2114QRGHRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

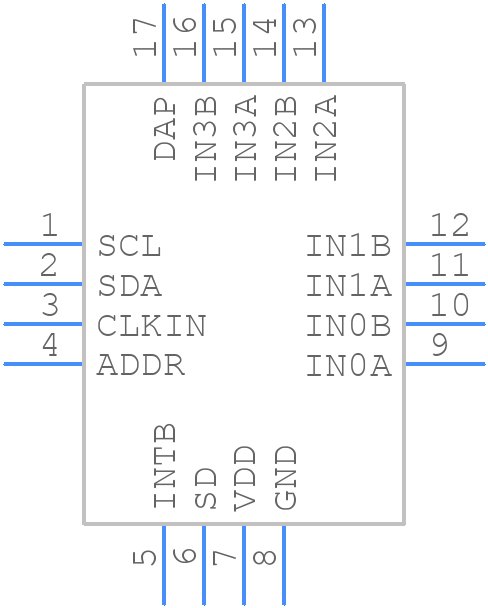

FDC2114QRGHRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
FDC2114QRGHRQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGH0016A
click to zoom
3D Models
FDC2114QRGHRQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - RGH0016A
click to zoom

FDC2114QRGHRQ1 Details

  • Manufacturer Part Number:

    FDC2114QRGHRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-05-15

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

FDC2114QRGHRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the FDC2114QRGHRQ1 evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The FDC2114QRGHRQ1 does not require calibration for capacitance measurements. However, it's recommended to perform a system-level calibration to account for PCB parasitics and other environmental factors that may affect measurement accuracy.
  • The FDC2114QRGHRQ1 can operate up to 1 MHz, but the maximum frequency of operation depends on the specific application and the capacitive sensor design. It's recommended to consult the datasheet and application notes for more information.
  • Yes, the FDC2114QRGHRQ1 can be used with a capacitive sensor array. However, it's essential to ensure that the sensor array is designed to meet the FDC2114QRGHRQ1's requirements for capacitance range and frequency of operation.
  • To handle noise and interference, it's recommended to use proper shielding, grounding, and filtering techniques in the PCB design. Additionally, the FDC2114QRGHRQ1 has built-in features such as noise filtering and averaging to help minimize the effects of noise and interference.
