FDC2212DNTR - Texas Instruments

Description: Capacitance to Digital Converter for Proximity and Level Digital Output 3.3V 12-Pin WSON EP T/R

Download FDC2212DNTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

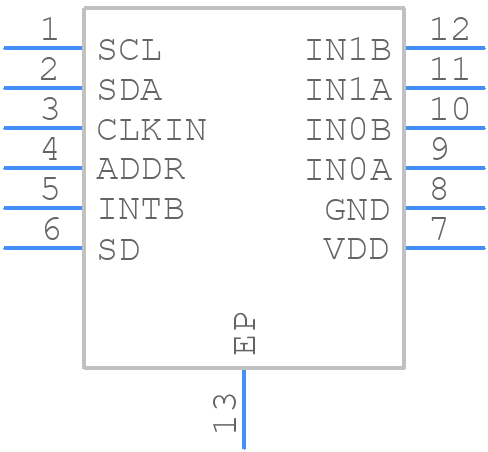

FDC2212DNTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
FDC2212DNTR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DNT0012B_12
click to zoom
3D Models
FDC2212DNTR - Texas Instruments - 3D model - Small Outline No-lead - DNT0012B_12
click to zoom

FDC2212DNTR Details

  • Manufacturer Part Number:

    FDC2212DNTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Dose:

    V

  • Width:

    4 mm

FDC2212DNTR Frequently Asked Questions (FAQs)

  • A good PCB layout for the FDC2212DNTR involves keeping the capacitive sensor traces as short as possible, using a solid ground plane, and minimizing the distance between the sensor and the device. TI provides a recommended layout in the datasheet and application notes.
  • Calibration involves adjusting the offset and gain of the device to match the specific sensor and application. TI provides a calibration procedure in the datasheet and application notes, which involves measuring the sensor capacitance with and without a target, and adjusting the device's internal registers accordingly.
  • The FDC2212DNTR can operate up to 100 kHz, but the maximum frequency of operation depends on the specific application and sensor configuration. TI recommends consulting the datasheet and application notes for specific guidance on frequency selection.
  • Noise and interference can be mitigated by using proper shielding, grounding, and filtering techniques. TI recommends using a low-pass filter to remove high-frequency noise, and ensuring that the sensor and device are properly shielded from electromagnetic interference.
  • Yes, the FDC2212DNTR can be used with custom sensor designs, but the device's performance may vary depending on the sensor's characteristics. TI recommends consulting the datasheet and application notes for guidance on sensor design and optimization.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FDC2212DNTR Overview

Use the download button to access the FDC2212DNTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FDC22, or try a keyword search, such as Other Signal Circuits
