FDC2212DNTT - Texas Instruments

Description: Proximity Sensors EMI-Resistant 28-Bit Capacitance to Digital Converter for Proximity and Level Sensing 12-WSON -40 to 125

Download FDC2212DNTT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

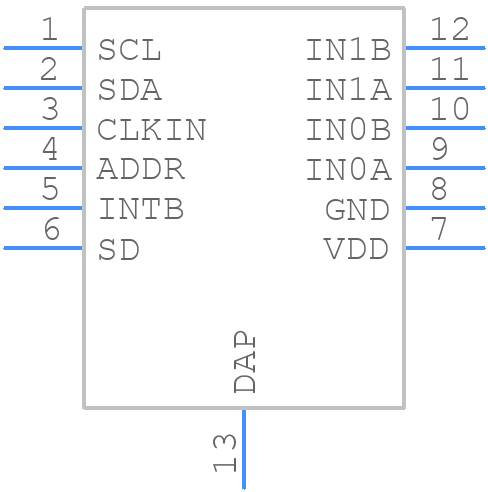

FDC2212DNTT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
FDC2212DNTT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DNT0012B_-
click to zoom
3D Models
FDC2212DNTT - Texas Instruments - 3D model - Small Outline No-lead - DNT0012B_-
click to zoom

FDC2212DNTT Details

  • Manufacturer Part Number:

    FDC2212DNTT

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SON

  • Pin Count:

    12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Dose:

    V

  • Width:

    4 mm

FDC2212DNTT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the capacitive sensor's guard ring is recommended. The sensor's electrodes should be placed on the top layer, and the guard ring should be connected to the analog ground.
  • Calibration involves adjusting the internal capacitor arrays to match the sensor's capacitance. Use the device's built-in calibration mode and follow the procedure outlined in the datasheet to achieve accurate measurements.
  • The internal oscillator frequency is fixed at 1.5 MHz. It cannot be adjusted, but the device's clock frequency can be synchronized with an external clock signal if needed.
  • Use proper shielding, grounding, and layout techniques to minimize noise. Implement noise filtering and averaging techniques in software to improve measurement accuracy. Consider using a Faraday shield or a guard ring to reduce electromagnetic interference.
  • Yes, the FDC2212DNTT can be used for proximity sensing applications. The device's capacitive sensing capabilities can detect changes in capacitance caused by the presence or absence of an object.
