A good PCB layout for the FDC2214RGHR involves keeping the capacitive sensor plates as close to the device as possible, using a solid ground plane, and minimizing the distance between the device and the capacitive sensor plates. Additionally, it's recommended to use a 4-layer PCB with a dedicated ground plane to reduce noise and improve performance.
Calibration of the FDC2214RGHR involves adjusting the sensitivity and offset registers to optimize the device's performance for a specific application. This can be done by following the calibration procedure outlined in the datasheet, which involves taking multiple readings with the sensor plates in different states and adjusting the registers accordingly.
The maximum operating frequency of the FDC2214RGHR is 400 kHz. However, the recommended operating frequency is typically in the range of 100 kHz to 200 kHz for optimal performance and noise immunity.
To handle noise and interference when using the FDC2214RGHR, it's recommended to use a shielded cable for the sensor connections, keep the device and sensor plates away from noise sources, and use a low-pass filter to filter out high-frequency noise. Additionally, the device's built-in noise filtering and averaging features can be used to improve noise immunity.
The FDC2214RGHR can measure capacitance values up to 100 pF. However, the device's sensitivity and accuracy may degrade at higher capacitance values, so it's recommended to use the device within its specified operating range for optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FDC2214RGHR Overview

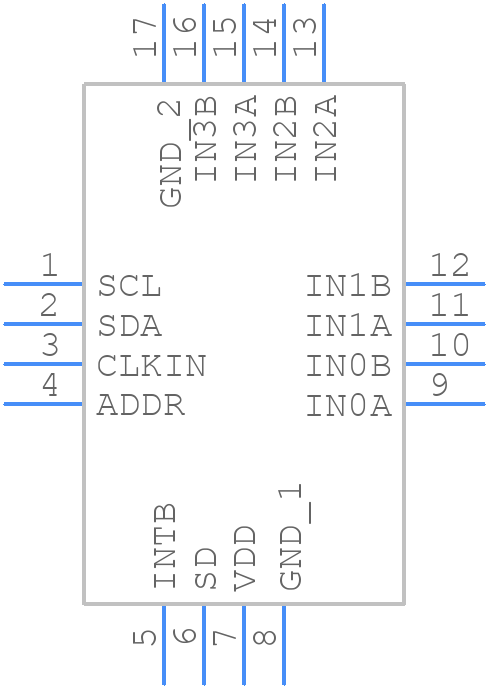

Use the download button to access the FDC2214RGHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FDC22,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
