A good PCB layout for the FDC37C669-MS involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded cable for the USB connection and keeping the USB traces away from the analog signals can help minimize EMI.
To ensure reliable communication, make sure to use a reliable USB cable, configure the host controller correctly, and implement proper error handling and retry mechanisms in the firmware. Additionally, ensure that the FDC37C669-MS is properly configured and initialized before attempting communication.
The FDC37C669-MS has a maximum junction temperature of 150°C. To ensure reliable operation in high-temperature environments, ensure good airflow around the device, use a heat sink if necessary, and avoid overheating the device. Additionally, consider using thermal management techniques such as thermal interface materials and heat sinks to reduce the junction temperature.
To troubleshoot issues with the FDC37C669-MS, start by checking the power supply and clock signals, then verify that the device is properly configured and initialized. Use a logic analyzer or oscilloscope to debug the USB signals, and check the device's registers and status bits for errors. Consult the datasheet and application notes for troubleshooting guides and FAQs.
When using the FDC37C669-MS in a battery-powered device, consider using a low-power mode, reducing the clock frequency, and minimizing the number of active circuits. Additionally, use power-saving features such as USB suspend and resume, and consider using a low-power oscillator or clock source. Consult the datasheet and application notes for power-saving techniques and guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FDC37C669-MS Overview

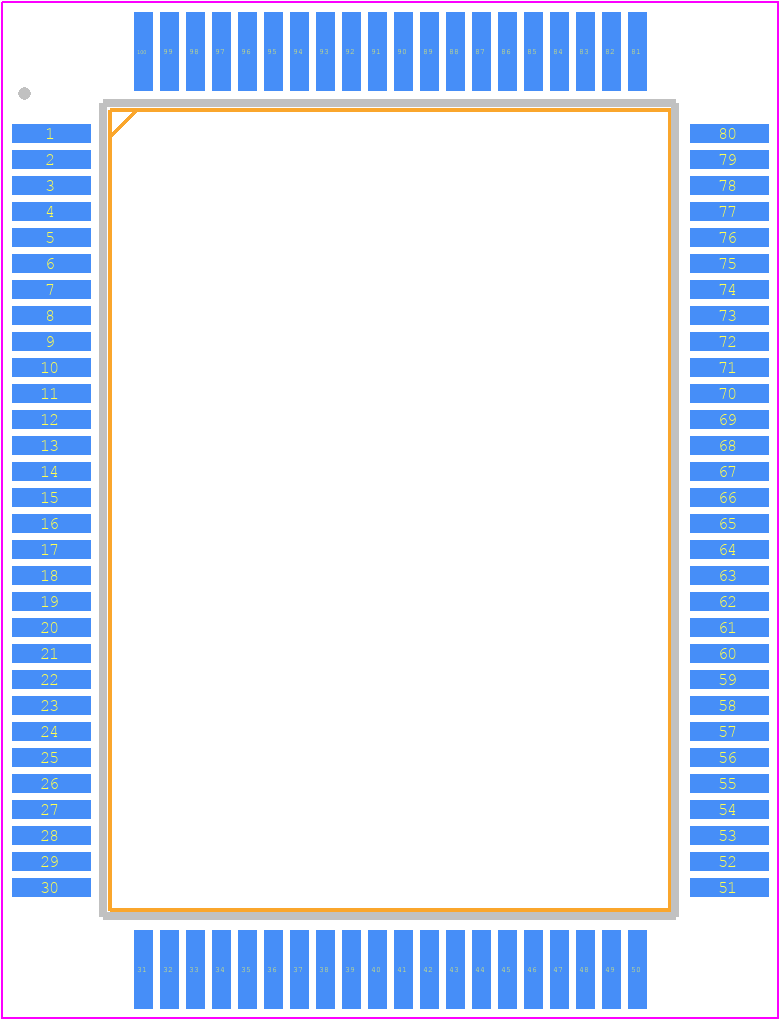

Use the download button to access the FDC37C669-MS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FDC37,
or try a keyword search, such as Secondary Storage Controllers
