Description:VON/OFF Zener protection for ESD ruggedness >6KV Human Body Model ; High density cell design for extremely low on-resistance ; VDROP=0.2V @ VIN=5V, IL=1A, VON/OFF= 1.5V to 8V VDROP=0.3V @ VIN=3.3V, IL=1A, VON/OFF= 1.5V to 8V ; SuperSOT™-6 package design using copper lead frame for superior thermal and electrical capabilities
A good PCB layout for the FDC6323L involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded inductor and placing it away from the device can help reduce EMI.
To ensure the FDC6323L operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive voltage, current, or temperature, and that the thermal design is adequate to keep the junction temperature below the maximum rating.
A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input of the FDC6323L. This helps to filter out noise and ripple on the input voltage.
To troubleshoot issues with the FDC6323L, start by checking the input voltage, output voltage, and output current. Verify that the device is properly soldered and that the PCB layout is correct. Check for signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for noise or oscillations on the output.
Yes, the FDC6323L is suitable for high-reliability and automotive applications. It is AEC-Q100 qualified and meets the requirements for automotive and industrial applications. However, it's essential to follow the recommended design guidelines and testing procedures to ensure the device meets the specific application requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FDC6323L Overview

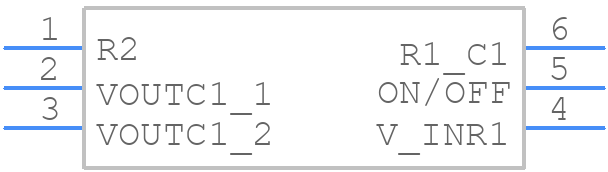

Use the download button to access the FDC6323L schematic symbol, PCB footprint, and 3D model.
