The recommended gate resistor value is typically between 10 ohms to 100 ohms, depending on the specific application and switching frequency. A higher value can help reduce EMI, but may slow down the switching speed.
Proper cooling can be achieved by providing a sufficient heat sink, ensuring good thermal contact between the device and heat sink, and using a thermal interface material (TIM) if necessary. The device's thermal resistance (RθJA) should be considered when designing the cooling system.
The maximum allowed voltage transient for the FDD7N60NZTM is typically 650V, but this can vary depending on the specific application and operating conditions. It's essential to ensure that the device is not exposed to voltage transients exceeding this value to prevent damage or premature failure.
Yes, the FDD7N60NZTM is suitable for high-frequency switching applications up to several hundred kHz. However, it's essential to consider the device's switching losses, gate charge, and thermal performance when designing the application.
Overcurrent protection can be achieved using a current sense resistor and a comparator or a dedicated overcurrent protection IC. Overvoltage protection can be implemented using a voltage supervisor or a dedicated overvoltage protection IC. It's essential to consider the device's absolute maximum ratings and recommended operating conditions when designing the protection circuitry.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FDD7N60NZTM Overview

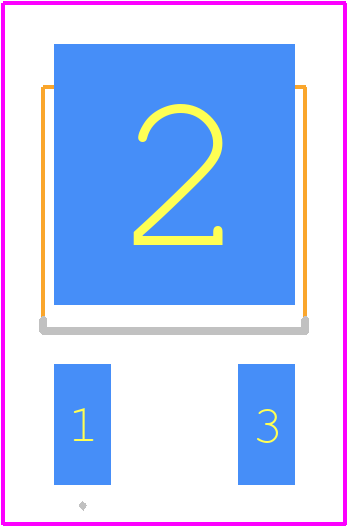

Use the download button to access the FDD7N60NZTM schematic symbol and PCB footprint.
