FDMQ8203 - onsemi

Description: Dual N-Channel and Dual P-Channel PowerTrench® MOSFET, GreenBridge™ Series of High-Efficiency Bridge Rectifiers

Download FDMQ8203 Model

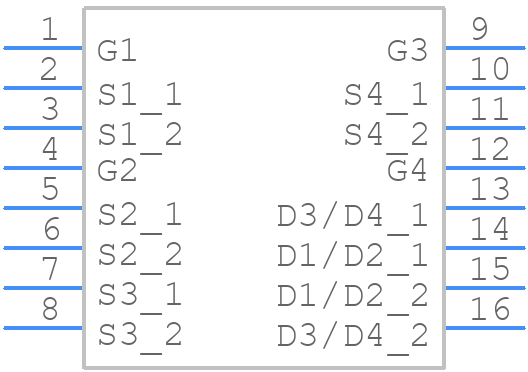

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FDMQ8203 - onsemi PCB footprint - Other - Other - MLP 4.5 x 5
click to zoom
3D Models
FDMQ8203 - onsemi  - 3D model - Other - MLP 4.5 x 5
click to zoom

FDMQ8203 Details

  • Manufacturer Part Number:

    FDMQ8203

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-12

  • Package Description:

    5 X 4.50 MM, ROHS COMPLIANT, MLP, 12 PIN

  • Manufacturer Package Code:

    511CS

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.6

  • Case Connection:

    DRAIN

  • Configuration:

    2 BANKS, COMMON DRAIN, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    3.4 A

  • Drain-source On Resistance-Max:

    0.11 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    4

  • Number of Terminals:

    12

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Power Dissipation-Max (Abs):

    37 W

  • Pulsed Drain Current-Max (IDM):

    12 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

FDMQ8203 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal path short and use a thermal pad on the bottom of the package.
  • Use a heat sink, ensure good airflow, and follow the recommended thermal design guidelines. Also, consider using a thermal interface material (TIM) to improve heat transfer.
  • The maximum allowed voltage on the gate driver output is 20V, but it's recommended to keep it below 18V to ensure reliable operation.
  • The FDMQ8203 is designed to operate with a 12V or 15V supply, but it can be used with other voltages (e.g., 9V or 24V) with proper design considerations and component selection.
  • Use a fuse or a current-limiting resistor in series with the device, and consider adding overvoltage protection (OVP) and undervoltage protection (UVP) circuits.
