FDMQ8403 - onsemi

Description: RoHS Compliant ; Max rDS(on) = 175 mΩ at VGS = 6 V, ID = 2.4 A ; Substantial efficiency benefit in PD solutions ; Max rDS(on) = 110 mΩ at VGS = 10 V, ID = 3 A

Download FDMQ8403 Model

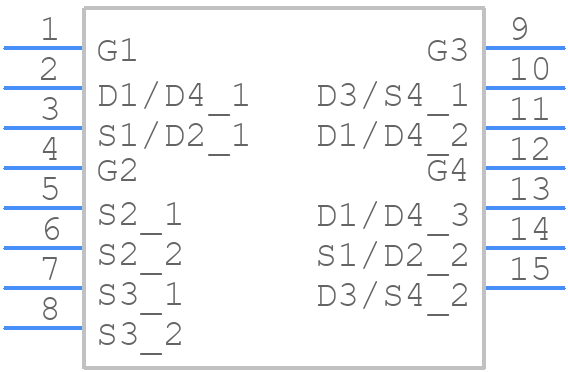

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FDMQ8403 - onsemi PCB footprint - Other - Other - FDMQ8403-3
click to zoom
3D Models
FDMQ8403 - onsemi  - 3D model - Other - FDMQ8403-3
click to zoom

FDMQ8403 Details

  • Manufacturer Part Number:

    FDMQ8403

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-12

  • Package Description:

    5 X 4.50 MM, ROHS COMPLIANT, MLP, 12 PIN

  • Manufacturer Package Code:

    511CR

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.6

  • Case Connection:

    DRAIN SOURCE

  • Configuration:

    COMMON DRAIN, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    3.1 A

  • Drain-source On Resistance-Max:

    0.11 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    12

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    17 W

  • Pulsed Drain Current-Max (IDM):

    12 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

FDMQ8403 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the FDMQ8403 is -55°C to 150°C.
  • To ensure proper biasing, connect the gate to a voltage source through a resistor, and connect the source to ground through a resistor. The recommended bias voltage is 5V to 15V.
  • The maximum current rating for the FDMQ8403 is 4A continuous drain current and 8A peak drain current.
  • To protect the FDMQ8403 from ESD, handle the device with an anti-static wrist strap or mat, and ensure that the device is stored in an anti-static bag or tube.
  • The recommended PCB layout for the FDMQ8403 includes a solid ground plane, short and wide traces for the drain and source pins, and a decoupling capacitor between the gate and source pins.
