FDMS8320L - onsemi

Description: Max rDS(on) = 1.1 mΩ at VGS = 10 V, ID = 32 A ; RoHS Compliant ; Max rDS(on) = 1.5 mΩ at VGS = 4.5 V, ID = 27 A ; MSL1 robust package design ; 100% UIL tested ; Next generation enhanced body diode technology, engineered for soft recovery ; Advanced Package and Silicon combination for low rDS(on) and high efficiency

Download FDMS8320L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FDMS8320L - onsemi - PCB symbol
click to zoom
PCB Footprints

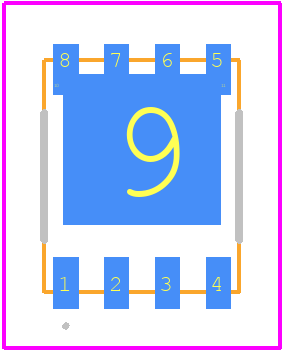

FDMS8320L - onsemi PCB footprint - Other - Other - PQFN8 5X6, 1.27P CASE 483AE
click to zoom
3D Models
FDMS8320L - onsemi - 3D model - Other - PQFN8 5X6, 1.27P CASE 483AE
click to zoom

FDMS8320L Details

  • Manufacturer Part Number:

    FDMS8320L

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PQFN-8

  • Package Description:

    ROHS COMPLIANT, POWER 56, 8 PIN

  • Manufacturer Package Code:

    483AE

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    264 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    36 A

  • Drain-source On Resistance-Max:

    0.0011 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    MO-240AA

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    104 W

  • Pulsed Drain Current-Max (IDM):

    150 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
