FE37M6C0206KB - Kyocera AVX

Description: Film Capacitors 900V20uF ESR=5.5

Download FE37M6C0206KB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FE37M6C0206KB - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

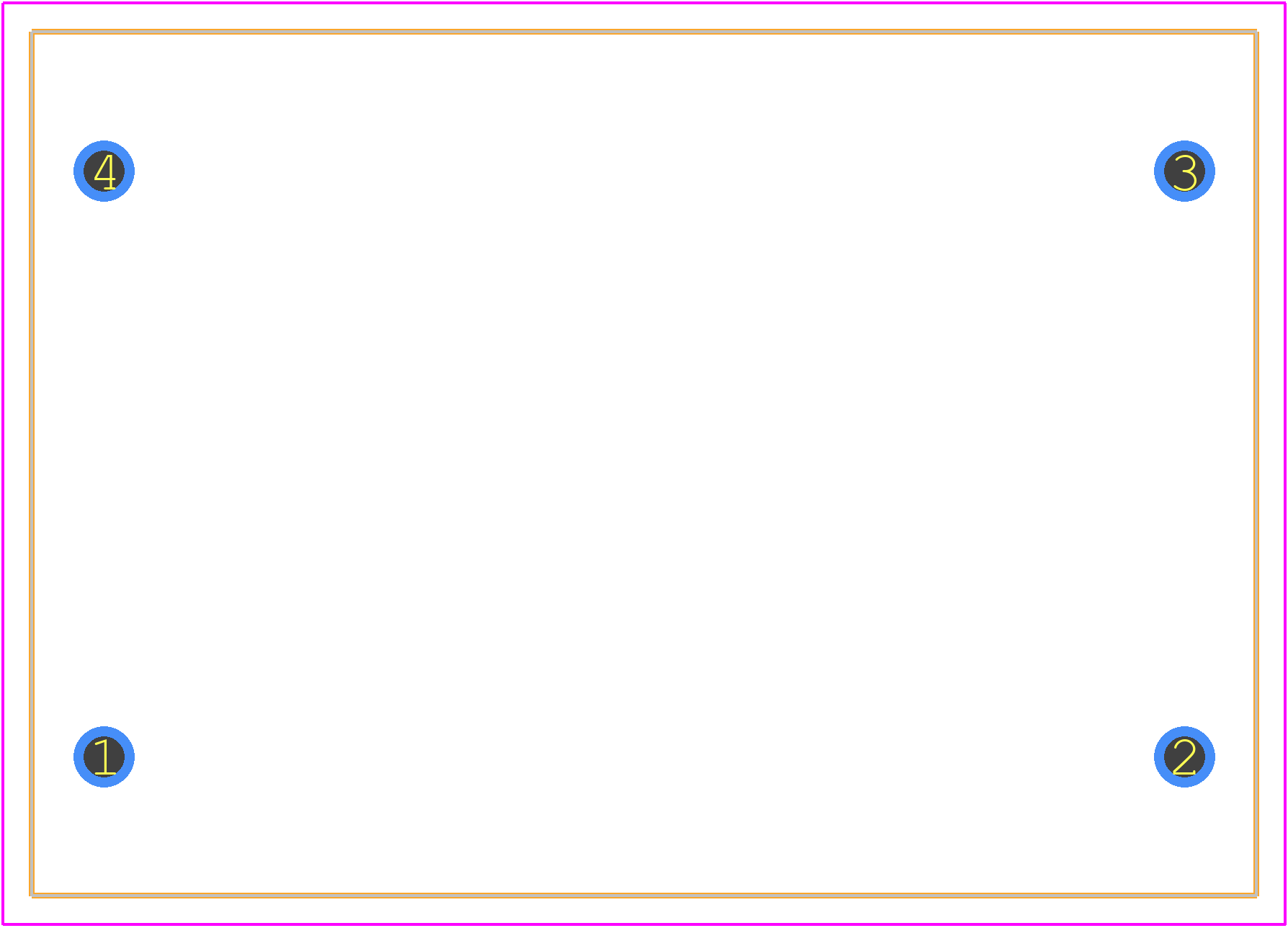

FE37M6C0206KB - Kyocera AVX PCB footprint - Other - Other - FE37M6C0206KB-1
click to zoom
3D Models
FE37M6C0206KB - Kyocera AVX - 3D model - Other - FE37M6C0206KB-1
click to zoom

FE37M6C0206KB Details

  • Manufacturer Part Number:

    FE37M6C0206KB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.80

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    0

  • Capacitance:

    20 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    45 mm

  • Length:

    42.5 mm

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    PCB Mount

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    900 V

  • Width:

    30 mm

FE37M6C0206KB Frequently Asked Questions (FAQs)

  • The recommended land pattern for FE37M6C0206KB is a rectangular pad with a size of 2.5mm x 1.25mm, with a solder mask clearance of 0.15mm.
  • Yes, FE37M6C0206KB is rated for operation up to 125°C, making it suitable for high-temperature applications. However, the capacitance and ESR may vary with temperature.
  • FE37M6C0206KB is designed for high-frequency applications and has a self-resonant frequency of 10MHz. It is suitable for use in high-frequency circuits up to 100MHz.
  • Yes, FE37M6C0206KB is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • FE37M6C0206KB should be stored in a dry, cool place, away from direct sunlight and moisture. It should be handled with care to avoid mechanical stress and electrostatic discharge.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FE37M6C0206KB Overview

Use the download button to access the FE37M6C0206KB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FE37M, or try a keyword search, such as Ceramic Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
