Infineon provides a recommended PCB layout in their application note AN2013-03, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
Infineon recommends using a gate driver with a minimum output current of 2A and a voltage rating that matches the IGBT's gate-emitter voltage. The driver should also have a suitable propagation delay and rise/fall time to ensure proper switching.
The maximum allowed overcurrent is typically 2-3 times the rated current. To protect the module, use a fast-acting fuse or a current sensor with a shutdown circuit to detect overcurrent conditions and disconnect the power supply.
Ensure good thermal contact between the module and the heat sink using a thermal interface material. The heat sink should be designed to provide adequate airflow and have a sufficient thermal capacity to dissipate the heat generated by the module.
Infineon provides guidelines for soldering and assembly in their application note AN2013-04, which includes recommendations for soldering temperature, time, and flux type, as well as assembly procedures to prevent damage to the module.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FF08MR12W1MA1_B11A Overview

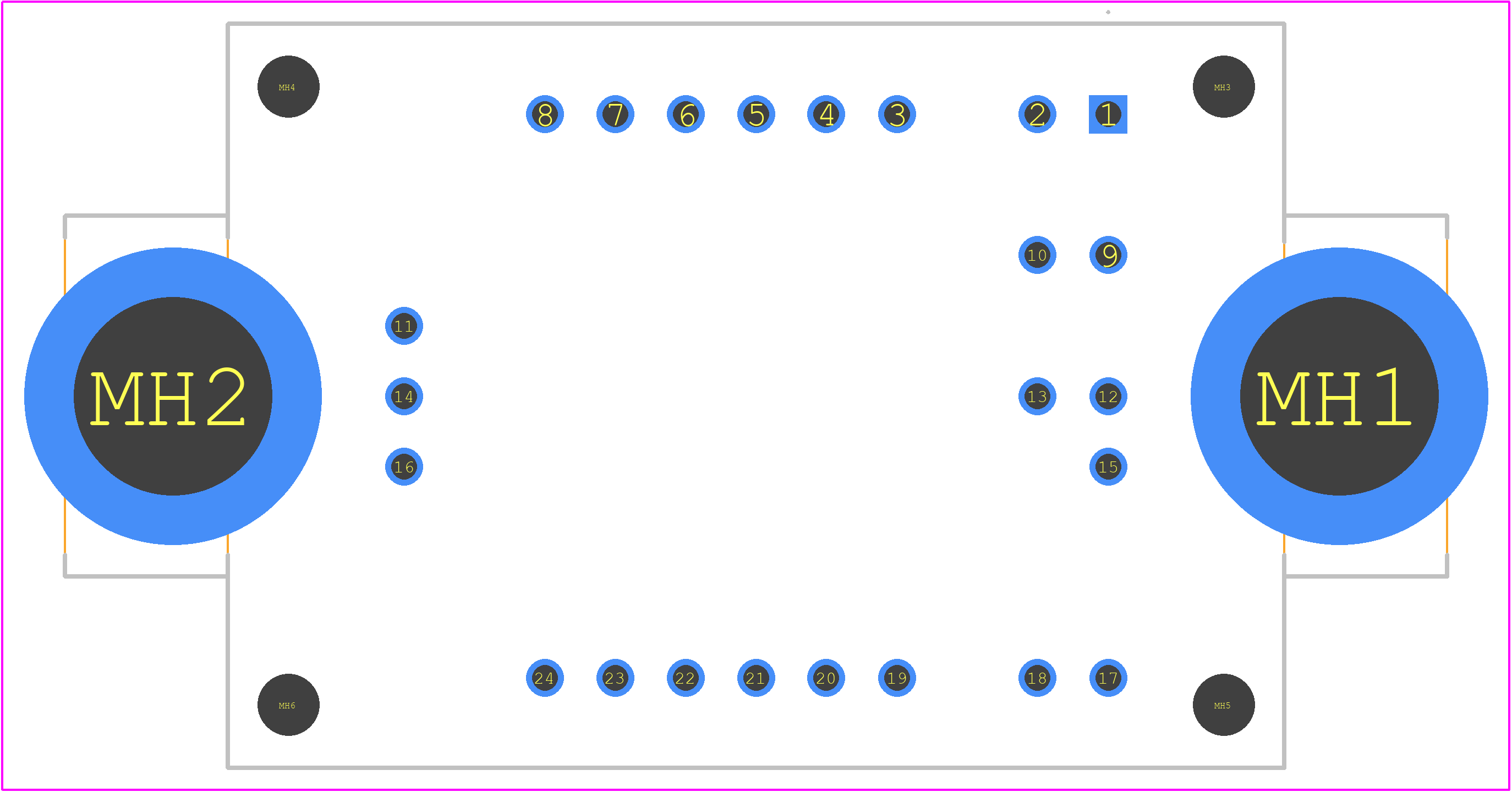

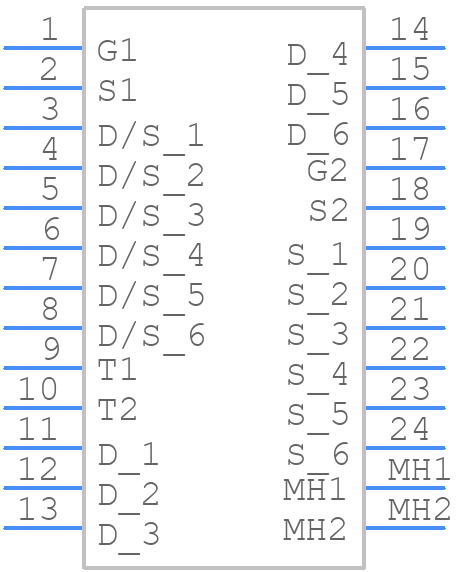

Use the download button to access the FF08MR12W1MA1_B11A schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FF08M,
or try a keyword search, such as Power Field-Effect Transistors
