FF150R12YT3 - Infineon

Description: Infineon FF150R12YT3, IGBT Module, Dual, 200 A max, 1200 V, 9-Pin EASY2

Download FF150R12YT3 Model

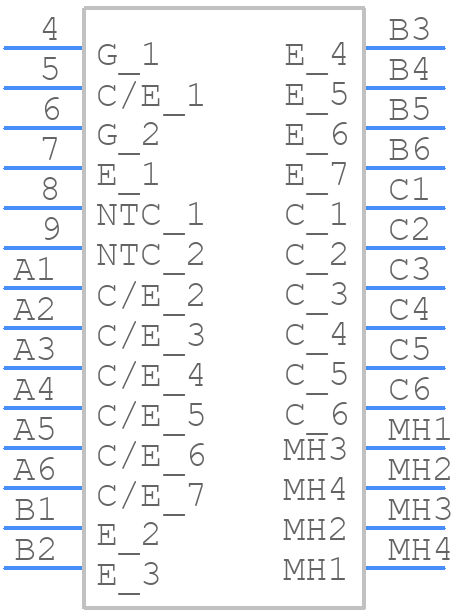

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

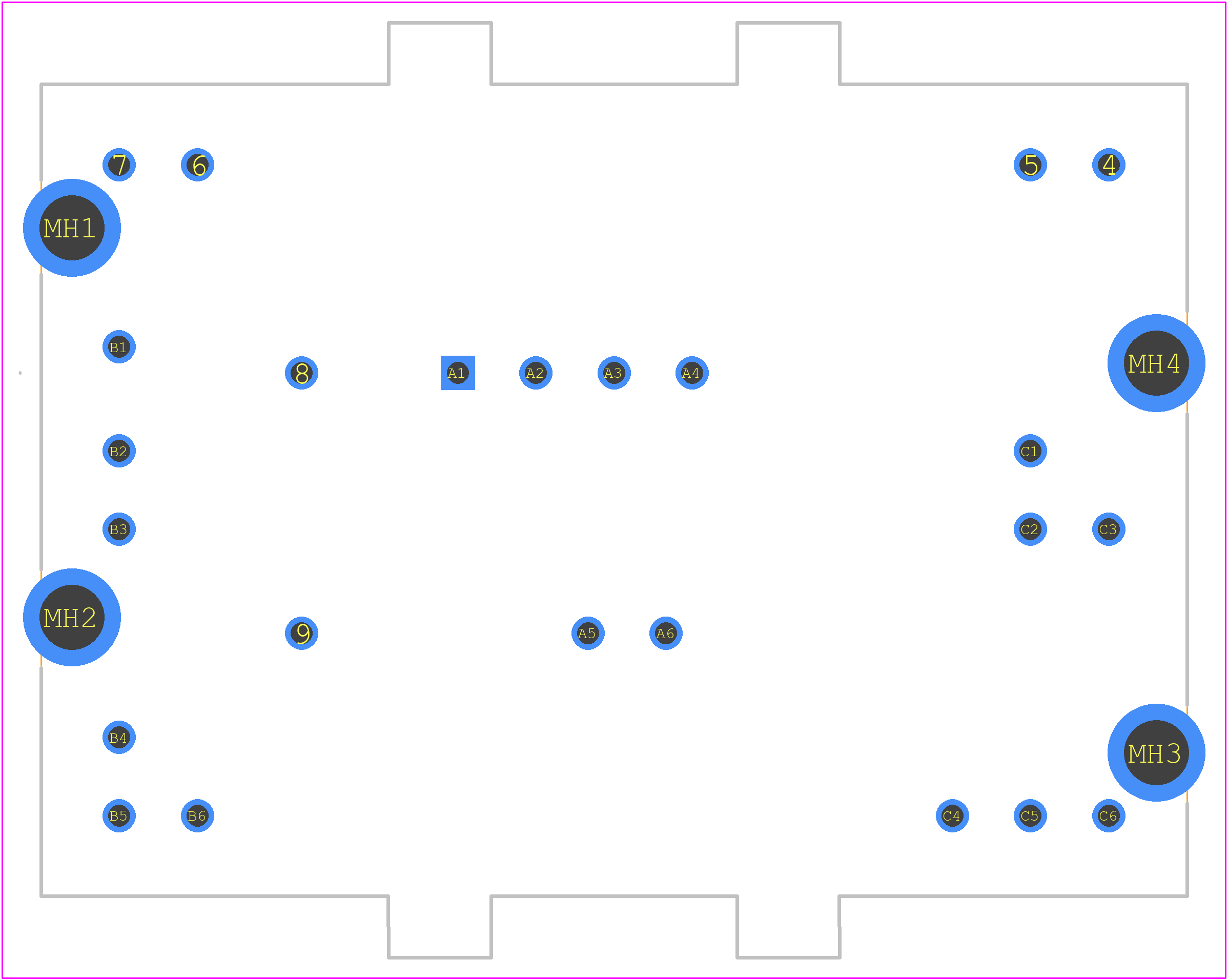

FF150R12YT3 - Infineon PCB footprint - Other - Other - FF150R12YT3-5
click to zoom
3D Models
FF150R12YT3 - Infineon  - 3D model - Other - FF150R12YT3-5
click to zoom

FF150R12YT3 Details

  • Manufacturer Part Number:

    FF150R12YT3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    MODULE

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    2

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    200 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X24

  • Number of Elements:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    625 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    610 ns

  • Turn-on Time-Nom (ton):

    330 ns

  • VCEsat-Max:

    2.15 V

FF150R12YT3 Frequently Asked Questions (FAQs)

  • The maximum allowed junction temperature for the FF150R12YT3 is 150°C, as specified in the datasheet.
  • To ensure reliability, it's essential to follow the recommended thermal management guidelines, such as using a suitable heat sink, ensuring good airflow, and avoiding overheating.
  • The recommended gate resistor value for the FF150R12YT3 is typically in the range of 10 ohms to 20 ohms, depending on the specific application and switching frequency.
  • Yes, the FF150R12YT3 can be used in a parallel configuration to increase current handling, but it's essential to ensure that the devices are properly matched and that the thermal management is adequate.
  • To protect the FF150R12YT3 from overvoltage and overcurrent conditions, it's recommended to use a suitable overvoltage protection circuit and a current sensing mechanism, such as a shunt resistor or a current sensor.
