FF300R17ME4 footprint, schematic symbol and 3D model by Infineon

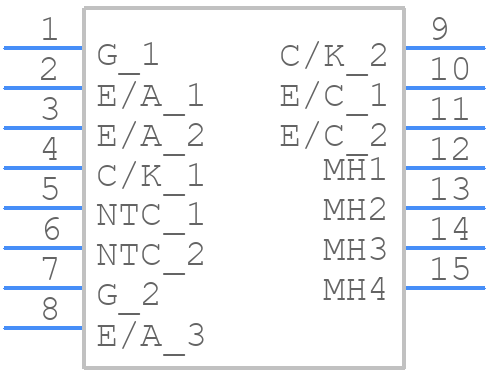

Symbol

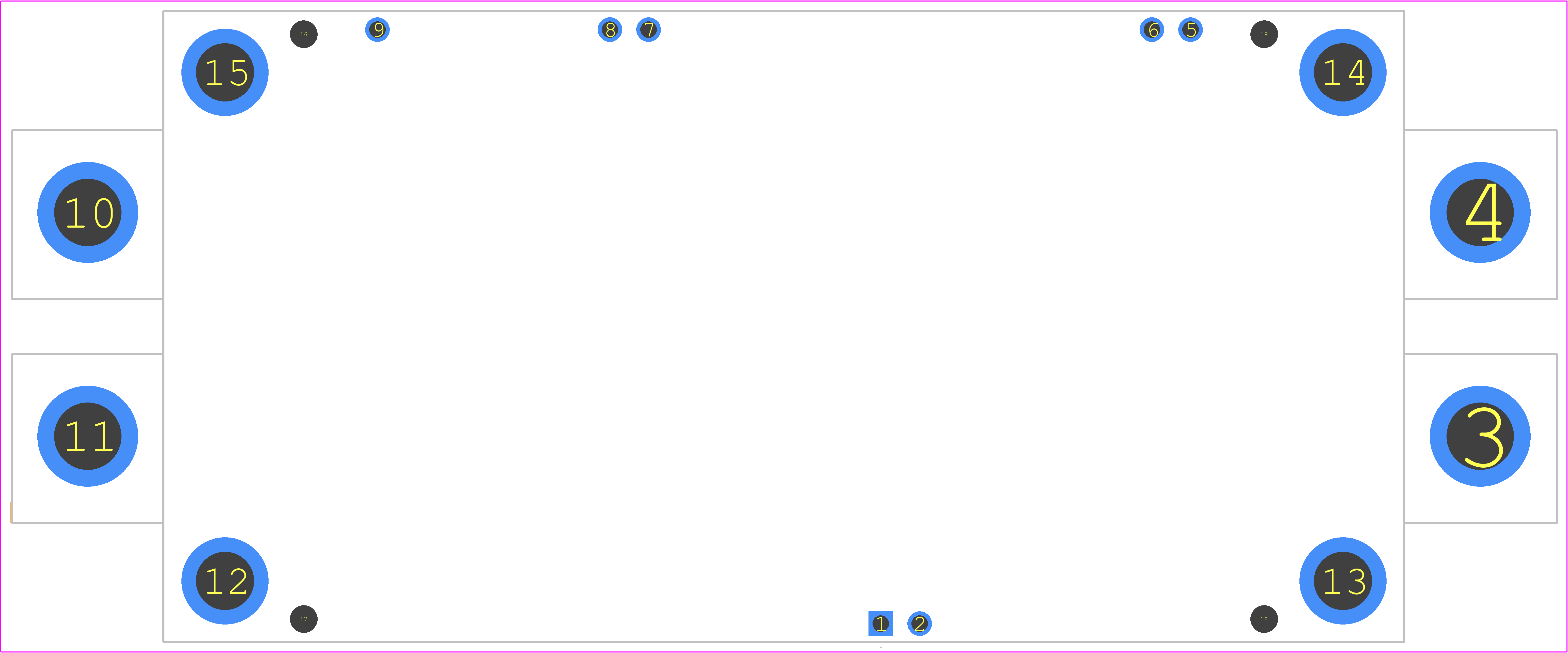

PCB Footprints

FF300R17ME4 Details

Manufacturer Part Number:
FF300R17ME4
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
MODULE
Pin Count:
11
Country Of Origin:
Austria, Hungary
ECCN Code:
EAR99
HTS Code:
8541.29.00.95
Factory Lead Time:
4 Weeks
Manufacturer:
Infineon Technologies AG
YTEOL:
7
Case Connection:
ISOLATED
Collector Current-Max (IC):
375 A
Collector-Emitter Voltage-Max:
1700 V
Configuration:
SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR
Gate-Emitter Voltage-Max:
20 V
JESD-30 Code:
R-XUFM-X11
Number of Elements:
2
Number of Terminals:
11
Operating Temperature-Max:
175 °C
Package Body Material:
UNSPECIFIED
Package Shape:
RECTANGULAR
Package Style:
FLANGE MOUNT
Polarity/Channel Type:
N-CHANNEL
Power Dissipation-Max (Abs):
1800 W
Qualification Status:
Not Qualified
Surface Mount:
NO
Terminal Form:
UNSPECIFIED
Terminal Position:
UPPER
Transistor Application:
POWER CONTROL
Transistor Element Material:
SILICON
Turn-off Time-Nom (toff):
1520 ns
Turn-on Time-Nom (ton):
405 ns
VCEsat-Max:
2.3 V

The maximum operating temperature range for the FF300R17ME4 is -40°C to 150°C.
To ensure reliability, it's essential to follow the recommended thermal management guidelines, such as using a heat sink, and ensuring good airflow around the device.
The recommended gate resistor value for the FF300R17ME4 is typically in the range of 10 ohms to 100 ohms, depending on the specific application and switching frequency.
Yes, the FF300R17ME4 is suitable for high-frequency switching applications up to 100 kHz, but it's essential to follow the recommended layout and PCB design guidelines to minimize parasitic inductances and capacitances.
To protect the FF300R17ME4, it's recommended to use overvoltage protection (OVP) and overcurrent protection (OCP) circuits, such as TVS diodes and current sense resistors, to prevent damage from voltage and current surges.

Community Provided

System Verified

Community Approved

Use the download button to access the FF300R17ME4 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FF300, or try a keyword search, such as IGBTs
