Part Image

FF600R12ME4B72BOSA1 - Infineon

Description: IGBT Modules MEDIUM POWER ECONO

Download FF600R12ME4B72BOSA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

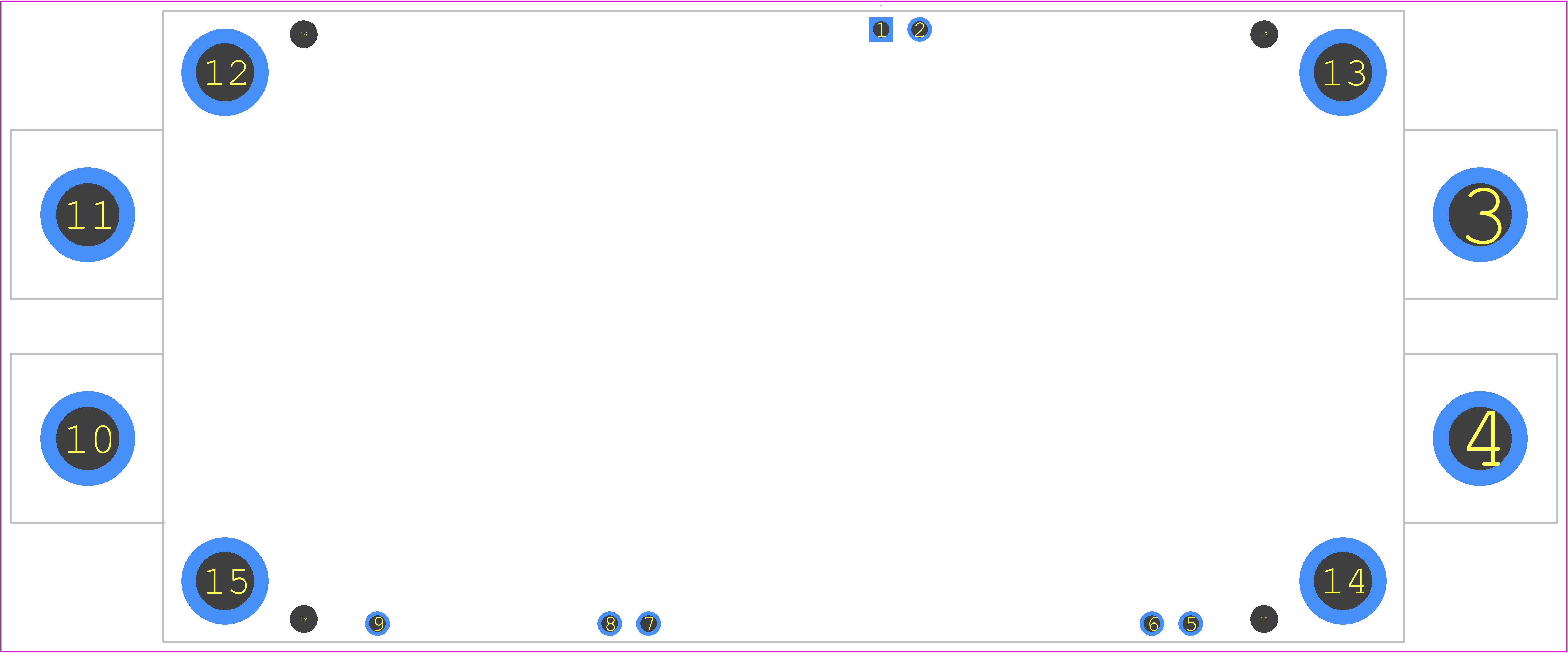

FF600R12ME4B72BOSA1 - Infineon PCB footprint - Other - Other - FF600R12ME4B72BOSA1-1
click to zoom
3D Models
FF600R12ME4B72BOSA1 - Infineon  - 3D model - Other - FF600R12ME4B72BOSA1-1
click to zoom

FF600R12ME4B72BOSA1 Details

  • Manufacturer Part Number:

    FF600R12ME4B72BOSA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Hungary

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    995 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

  • JESD-30 Code:

    R-XUFM-X7

  • Number of Elements:

    2

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    770 ns

  • Turn-on Time-Nom (ton):

    310 ns

FF600R12ME4B72BOSA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature of the FF600R12ME4B72BOSA1 is 150°C, as specified in the datasheet.
  • Proper thermal management of the FF600R12ME4B72BOSA1 can be achieved by ensuring good heat sink contact, using a suitable thermal interface material, and maintaining a low thermal resistance between the module and the heat sink.
  • The recommended gate resistor value for the FF600R12ME4B72BOSA1 is typically in the range of 10 ohms to 20 ohms, depending on the specific application and switching frequency.
  • Yes, the FF600R12ME4B72BOSA1 can be used in a parallel configuration, but it requires careful consideration of the current sharing and thermal management between the parallel modules.
  • The maximum allowable voltage transient for the FF600R12ME4B72BOSA1 is specified in the datasheet as 1200 V, but it's recommended to limit the voltage transient to 1000 V to ensure reliable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FF600R12ME4B72BOSA1 Overview

Use the download button to access the FF600R12ME4B72BOSA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FF600, or try a keyword search, such as IGBTs
