FFB54D0117KJC - Kyocera AVX

Description: AVX FFB 110μF Polypropylene Film Capacitor 75 V dc ±10%

Download FFB54D0117KJC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FFB54D0117KJC - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

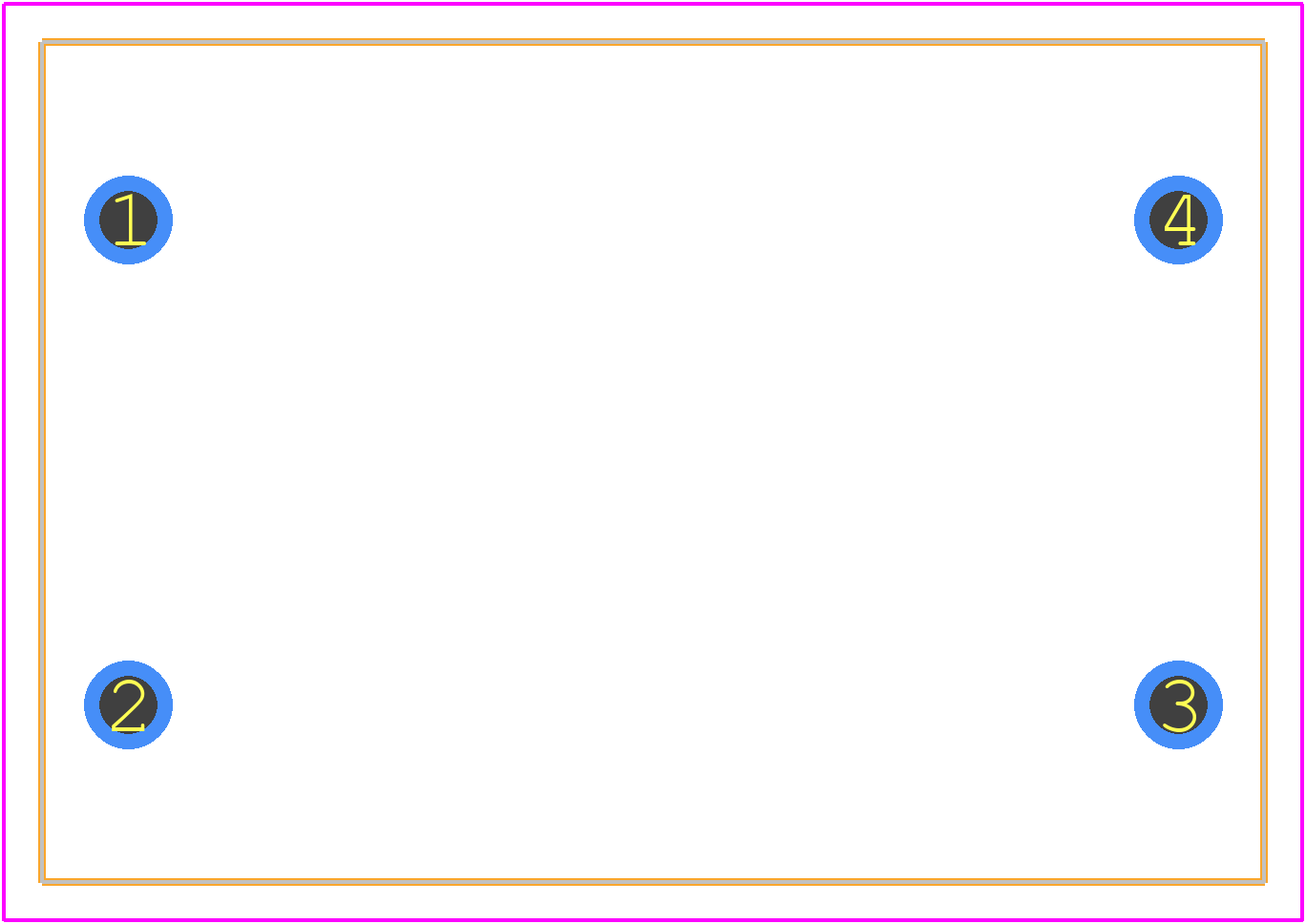

FFB54D0117KJC - Kyocera AVX PCB footprint - Other - Other - FFB54D0117KJC-1
click to zoom
3D Models
FFB54D0117KJC - Kyocera AVX - 3D model - Other - FFB54D0117KJC-1
click to zoom

FFB54D0117KJC Details

  • Manufacturer Part Number:

    FFB54D0117KJC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    32 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.26

  • Capacitance:

    110 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYESTER

  • Height:

    37 mm

  • Length:

    32 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    PCB Mount

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    45 V

  • Rated (DC) Voltage (URdc):

    75 V

  • Reference Standard:

    IEC61071

  • Surface Mount:

    NO

  • Terminal Shape:

    WIRE

  • Width:

    22 mm

FFB54D0117KJC Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the FFB54D0117KJC is between 250°C to 260°C for a maximum of 10 seconds.
  • Yes, the FFB54D0117KJC is a high-frequency capacitor with a self-resonant frequency of 1.7 GHz, making it suitable for high-frequency applications.
  • The maximum operating voltage derating for the FFB54D0117KJC is 80% of the rated voltage, which is 11.2V for this specific part.
  • Yes, the FFB54D0117KJC is AEC-Q200 qualified, which means it meets the stringent requirements for automotive applications.
  • The FFB54D0117KJC has an MSL rating of 3, which means it can withstand exposure to moisture for up to 168 hours.
