FFB54E0686KJC - Kyocera AVX

Description: AVX FFB 68μF Polypropylene Film Capacitor 100 V dc ±10% 60 VAC 1.4 mOhms

Download FFB54E0686KJC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FFB54E0686KJC - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

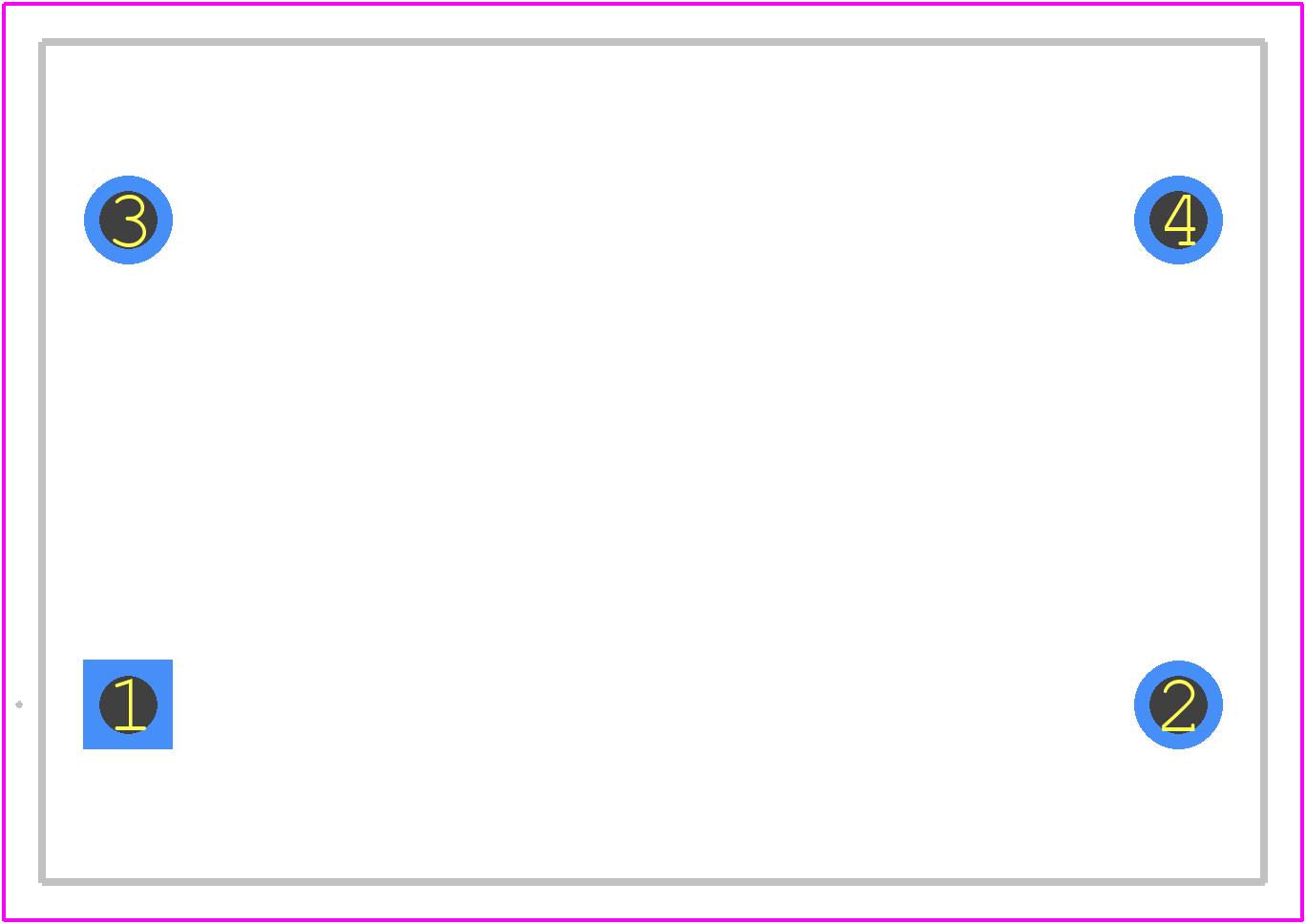

FFB54E0686KJC - Kyocera AVX PCB footprint - Other - Other - FFB54E0686KJC-2
click to zoom
3D Models
FFB54E0686KJC - Kyocera AVX - 3D model - Other - FFB54E0686KJC-2
click to zoom

FFB54E0686KJC Details

  • Manufacturer Part Number:

    FFB54E0686KJC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    32 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6

  • Capacitance:

    68 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYESTER

  • Height:

    37 mm

  • Length:

    32 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    PCB Mount

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    60 V

  • Rated (DC) Voltage (URdc):

    110 V

  • Reference Standard:

    IEC61071

  • Surface Mount:

    NO

  • Terminal Shape:

    WIRE

  • Width:

    22 mm

FFB54E0686KJC Frequently Asked Questions (FAQs)

  • The recommended land pattern for FFB54E0686KJC is available in the Kyocera AVX Components' land pattern document, which can be found on their website or through a request to their technical support team.
  • Yes, FFB54E0686KJC is designed to withstand high-vibration environments. However, it's recommended to consult with Kyocera AVX Components' technical support team to ensure the component meets the specific vibration requirements of your application.
  • The maximum operating temperature range for FFB54E0686KJC is -40°C to +125°C. However, it's recommended to consult the datasheet and application notes for specific temperature derating information.
  • Yes, FFB54E0686KJC is compatible with lead-free soldering processes. Kyocera AVX Components ensures that their components meet the requirements of the RoHS directive and are compatible with lead-free soldering processes.
  • The recommended storage and handling procedure for FFB54E0686KJC is to store the components in a dry, cool place, away from direct sunlight and moisture. It's also recommended to follow the ESD handling procedures to prevent damage to the component.
