FGA15N120ANTDTU-F109 - onsemi

Description: Obsolete - IGBT, 1250V, 15A, Shorted-anode

Download FGA15N120ANTDTU-F109 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

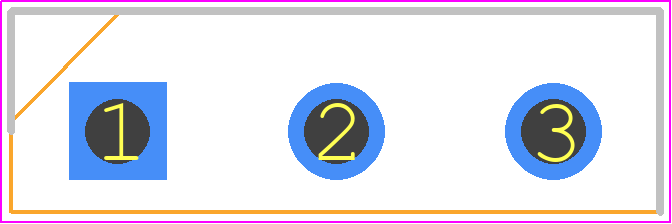

FGA15N120ANTDTU-F109 - onsemi PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO−3P−3LD / EIAJ SC−65, ISOLATED CASE 340BZ ISSUE O
click to zoom
3D Models
FGA15N120ANTDTU-F109 - onsemi  - 3D model - Transistor Outline, Vertical - TO−3P−3LD / EIAJ SC−65, ISOLATED CASE 340BZ ISSUE O
click to zoom

FGA15N120ANTDTU-F109 Details

  • Manufacturer Part Number:

    FGA15N120ANTDTU-F109

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TO-3PN 3L

  • Manufacturer Package Code:

    340BZ

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Collector Current-Max (IC):

    30 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Fall Time-Max (tf):

    180 ns

  • Gate-Emitter Thr Voltage-Max:

    8.5 V

  • Gate-Emitter Voltage-Max:

    20 V

  • Operating Temperature-Max:

    150 °C

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    186 W

  • Surface Mount:

    NO

FGA15N120ANTDTU-F109 Frequently Asked Questions (FAQs)

  • The maximum junction temperature for FGA15N120ANTDTU-F109 is 150°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
  • To ensure proper cooling, it's essential to provide a good thermal interface between the device and the heat sink. Apply a thin layer of thermal interface material, and ensure the heat sink is properly mounted and secured. Additionally, ensure good airflow around the device to dissipate heat efficiently.
  • The recommended gate drive voltage for FGA15N120ANTDTU-F109 is between 10V and 15V. However, it's essential to consult the datasheet and application notes for specific gate drive requirements, as they may vary depending on the application and operating conditions.
  • Yes, FGA15N120ANTDTU-F109 is suitable for high-frequency switching applications. However, it's crucial to consider the device's switching characteristics, such as rise and fall times, and ensure that the device is properly driven and cooled to prevent overheating and reduce electromagnetic interference (EMI).
  • To protect the device from overvoltage and overcurrent, it's recommended to use a suitable voltage regulator and overcurrent protection circuitry. Additionally, consider using a transient voltage suppressor (TVS) or a metal-oxide varistor (MOV) to protect the device from voltage spikes and surges.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FGA15N120ANTDTU-F109 Overview

Use the download button to access the FGA15N120ANTDTU-F109 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FGA15, or try a keyword search, such as IGBTs
