FH12-13S-0.5SVA(54) - Hirose

Description: FFC & FPC Connectors 0.5MM 13P SMT VERT MNT SELECT GLD

Download FH12-13S-0.5SVA(54) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

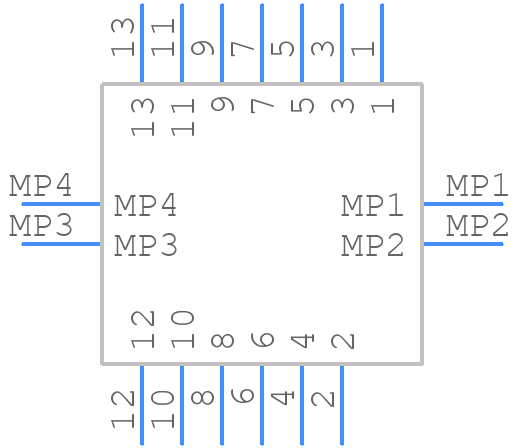

Symbol
FH12-13S-0.5SVA(54) - Hirose - PCB symbol
click to zoom

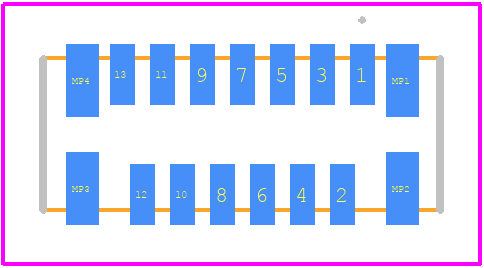

PCB Footprints
FH12-13S-0.5SVA(54) - Hirose PCB footprint - Other - Other - FH12-13S-0.5SVA(54)-2
click to zoom
3D Models
FH12-13S-0.5SVA(54) - Hirose - 3D model - Other - FH12-13S-0.5SVA(54)-2
click to zoom

FH12-13S-0.5SVA(54) Details

  • Manufacturer Part Number:

    FH12-13S-0.5SVA(54)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8

  • Connector Type:

    FFC/FPC CONNECTOR

FH12-13S-0.5SVA(54) Frequently Asked Questions (FAQs)

  • The recommended mating cycle for FH12-13S-0.5SVA(54) connectors is 500 cycles.
  • Yes, FH12-13S-0.5SVA(54) connectors are designed to withstand vibrations up to 10G (10-2000Hz) and are suitable for use in high-vibration applications.
  • The operating temperature range for FH12-13S-0.5SVA(54) connectors is -40°C to 105°C.
  • Yes, FH12-13S-0.5SVA(54) connectors are compatible with lead-free soldering and can withstand the higher temperatures required for lead-free soldering processes.
  • The recommended torque for FH12-13S-0.5SVA(54) connectors is 0.5 N·m to 1.5 N·m.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FH12-13S-0.5SVA(54) Overview

Use the download button to access the FH12-13S-0.5SVA(54) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FH12-, or try a keyword search, such as Headers and Edge Type Connectors
