FH12-18S-0.5SVA(54) - Hirose

Description: FFC & FPC Connectors 0.5MM 18P SMT VERT MNT SELECT GLD

Download FH12-18S-0.5SVA(54) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

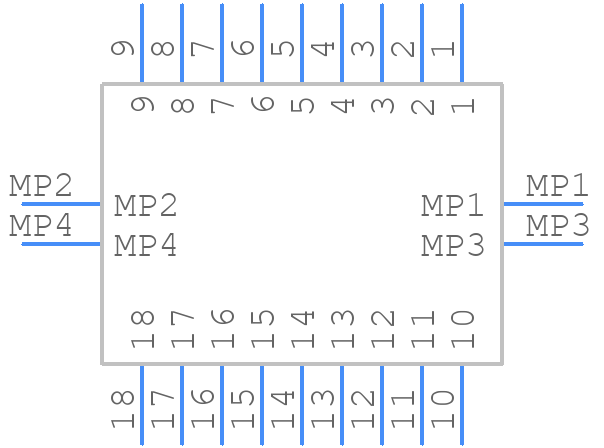

FH12-18S-0.5SVA(54) - Hirose - PCB symbol
click to zoom
PCB Footprints

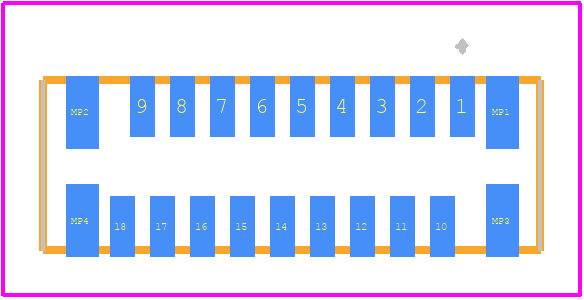

FH12-18S-0.5SVA(54) - Hirose PCB footprint - Other - Other - FH12-18S-0.5SVA(54)-2
click to zoom
3D Models
FH12-18S-0.5SVA(54) - Hirose - 3D model - Other - FH12-18S-0.5SVA(54)-2
click to zoom

FH12-18S-0.5SVA(54) Details

  • Manufacturer Part Number:

    FH12-18S-0.5SVA(54)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    7.5

  • Connector Type:

    FFC/FPC CONNECTOR

FH12-18S-0.5SVA(54) Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 N·m to 1.0 N·m, but it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific guidance.
  • Yes, the FH12-18S-0.5SVA(54) is designed to withstand vibrations and is suitable for use in harsh environments. However, it's recommended to consult the datasheet and perform necessary testing to ensure reliability.
  • The operating temperature range for the FH12-18S-0.5SVA(54) is -40°C to 105°C. However, it's recommended to consult the datasheet for specific temperature ratings and derating information.
  • Yes, the FH12-18S-0.5SVA(54) is designed to be resistant to humidity and moisture. However, it's recommended to consult the datasheet and perform necessary testing to ensure reliability in high-humidity environments.
  • The mating cycle life of the FH12-18S-0.5SVA(54) is 500 cycles minimum. However, it's recommended to consult the datasheet for specific information on mating cycle life and testing conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FH12-18S-0.5SVA(54) Overview

Use the download button to access the FH12-18S-0.5SVA(54) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FH12-, or try a keyword search, such as Headers and Edge Type Connectors
