FH12-33S-0.5SH(55) - Hirose

Description: 0.5mm pitch FFC FPC 33 way connector Hirose FH12 Series 0.5mm Pitch 33 Way 1 Row Straight SMT Female FPC Connector, Gold Plated Contacts

Download FH12-33S-0.5SH(55) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

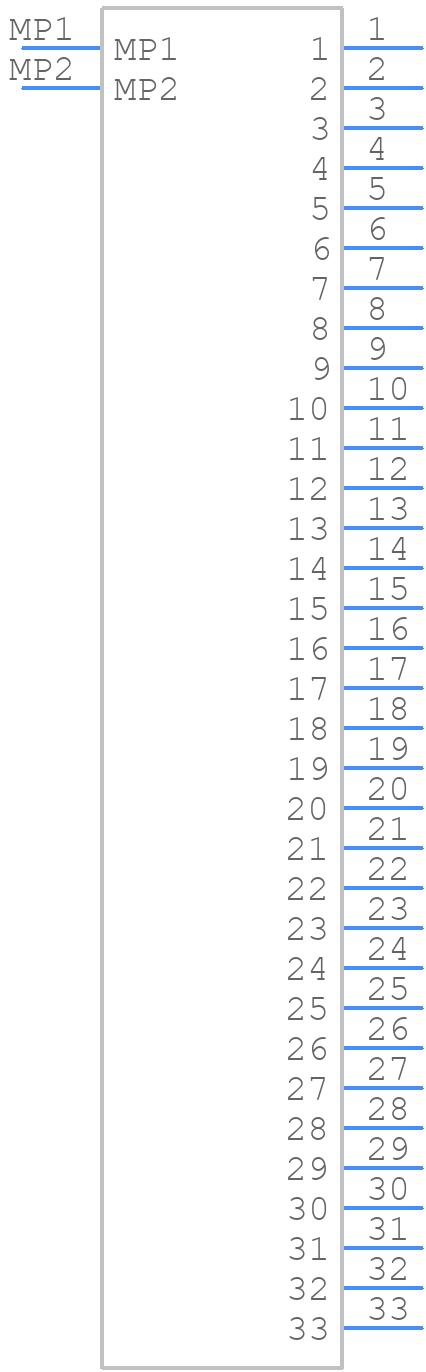

FH12-33S-0.5SH(55) - Hirose - PCB symbol
click to zoom
PCB Footprints
FH12-33S-0.5SH(55) - Hirose PCB footprint - Other - Other - FH12-33S-0.5SH(55)-1
click to zoom
3D Models
FH12-33S-0.5SH(55) - Hirose - 3D model - Other - FH12-33S-0.5SH(55)-1
click to zoom

FH12-33S-0.5SH(55) Details

  • Manufacturer Part Number:

    FH12-33S-0.5SH(55)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    7.76

  • Connector Type:

    FFC/FPC CONNECTOR
