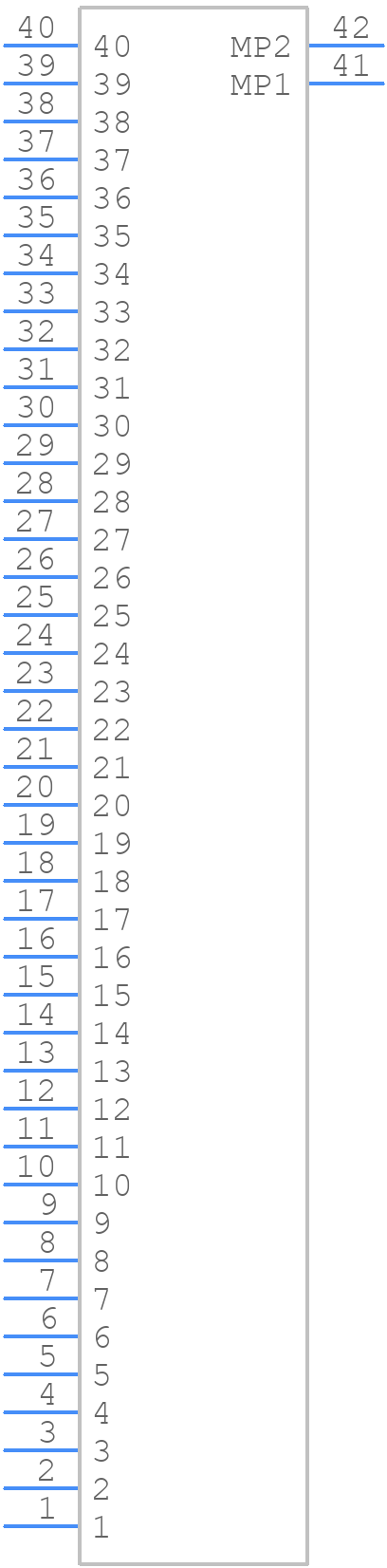

FH12A-40S-0.5SH(55) - Hirose

FH12A-40S-0.5SH(55) Details

• Manufacturer Part Number:

  FH12A-40S-0.5SH(55)

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Country Of Origin:

  Japan

• ECCN Code:

  EAR99

• Factory Lead Time:

  26 Weeks

• Manufacturer:

  Hirose Electric Co Ltd

• YTEOL:

  3

• Body Breadth:

  0.079 inch

• Body Depth:

  0.244 inch

• Body Length:

  0.949 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  FFC/FPC CONNECTOR

• Contact Gender:

  FEMALE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  50 mΩ

• Contact Style:

  BELLOWED TYPE

• Dielectric Withstanding Voltage:

  150VAC V

• Durability:

  20 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  ZIF N

• Insulation Resistance:

  500000000 Ω

• Insulator Color:

  BEIGE

• Insulator Material:

  POLYAMIDE

• Mating Contact Pitch:

  0.02 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• Packing Method:

  TR

• Plating Thickness:

  FLASH inch

• Rated Current (Signal):

  0.5 A

• Reference Standard:

  UL

• Terminal Pitch:

  0.5 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  40

• UL Flammability Code:

  94V-0
