The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m, as specified in the Hirose Electric Co Ltd's application notes.
Yes, the FH19SC-20S-0.5SH(09) is designed to withstand vibrations up to 10G (10-2000Hz) and is suitable for use in high-vibration environments, such as in industrial or automotive applications.
Yes, the FH19SC-20S-0.5SH(09) is designed for automated assembly and can be used with standard pick-and-place machines and reflow soldering processes.
The maximum operating temperature for the FH19SC-20S-0.5SH(09) is 125°C, as specified in the datasheet. However, it's recommended to derate the operating temperature based on the specific application and environmental conditions.
The FH19SC-20S-0.5SH(09) has a IP67 rating, which means it is protected against dust and water ingress. However, it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer to determine the suitability of this connector for specific harsh environments.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FH19SC-20S-0.5SH(09) Overview

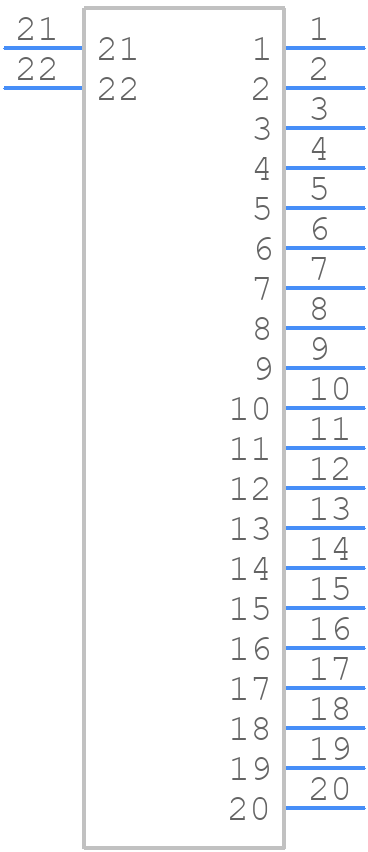

Use the download button to access the FH19SC-20S-0.5SH(09) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FH19S,
or try a keyword search, such as Headers and Edge Type Connectors
