The recommended torque for the screw locks is 0.5 N·m to 1.0 N·m. It's essential to follow the recommended torque to ensure secure connection and prevent damage to the connector.
Yes, the FH19SC-40S-0.5SH(05) is designed to withstand vibrations and can be used in high-vibration applications. However, it's essential to ensure proper mounting and screw locking to prevent connector damage or disconnection.
The FH19SC-40S-0.5SH(05) has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments.
The FH19SC-40S-0.5SH(05) has an operating temperature range of -40°C to 105°C. It's essential to ensure the connector is used within this temperature range to ensure reliable operation.
The FH19SC-40S-0.5SH(05) is designed for use with AWG 20-24 wires. Using a different wire gauge may affect the connector's performance and reliability. It's recommended to use the specified wire gauge for optimal results.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FH19SC-40S-0.5SH(05) Overview

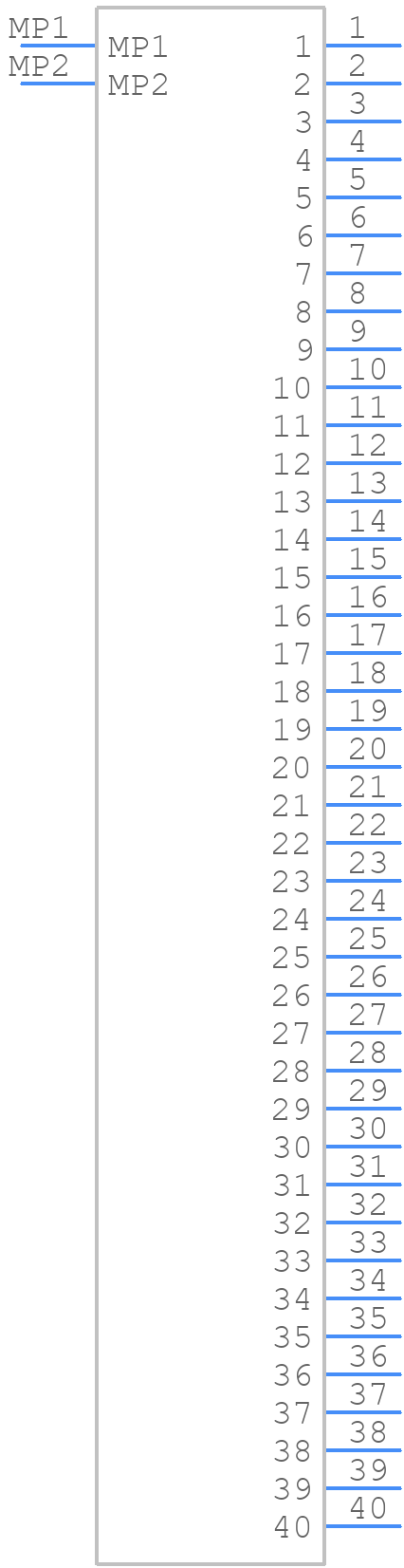

Use the download button to access the FH19SC-40S-0.5SH(05) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FH19S,
or try a keyword search, such as Headers and Edge Type Connectors
