FH26-15S-0.3SHW(05) - Hirose

Description: Hirose 0.3mm Pitch 15 Way Straight SMT Female FPC Connector

Download FH26-15S-0.3SHW(05) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

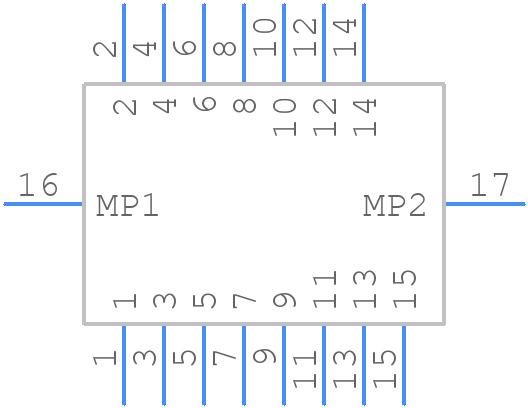

Symbol
FH26-15S-0.3SHW(05) - Hirose - PCB symbol
click to zoom
PCB Footprints
FH26-15S-0.3SHW(05) - Hirose PCB footprint - Other - Other - FH26-15S-0.3SHW(05)-2
click to zoom
3D Models
FH26-15S-0.3SHW(05) - Hirose - 3D model - Other - FH26-15S-0.3SHW(05)-2
click to zoom

FH26-15S-0.3SHW(05) Details

  • Manufacturer Part Number:

    FH26-15S-0.3SHW(05)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    LOW PROFILE

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    GOLD (1)

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.012 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.6 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

FH26-15S-0.3SHW(05) Frequently Asked Questions (FAQs)

  • The recommended mating cycle for FH26-15S-0.3SHW(05) connectors is 500 cycles, as specified by Hirose Electric Co Ltd.
  • Yes, FH26-15S-0.3SHW(05) connectors are designed to withstand high-vibration environments, with a vibration resistance of 10-2000Hz, 10G acceleration.
  • The operating temperature range for FH26-15S-0.3SHW(05) connectors is -40°C to 105°C, making them suitable for a wide range of applications.
  • Yes, FH26-15S-0.3SHW(05) connectors are designed for automated assembly and can be easily integrated into high-volume production lines.
  • The typical lead time for FH26-15S-0.3SHW(05) connectors is 8-12 weeks, depending on the quantity and availability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FH26-15S-0.3SHW(05) Overview

Use the download button to access the FH26-15S-0.3SHW(05) schematic symbol, PCB footprint, and 3D model.
