FH26-31S-0.3SHW(05) footprint, schematic symbol and 3D model by Hirose

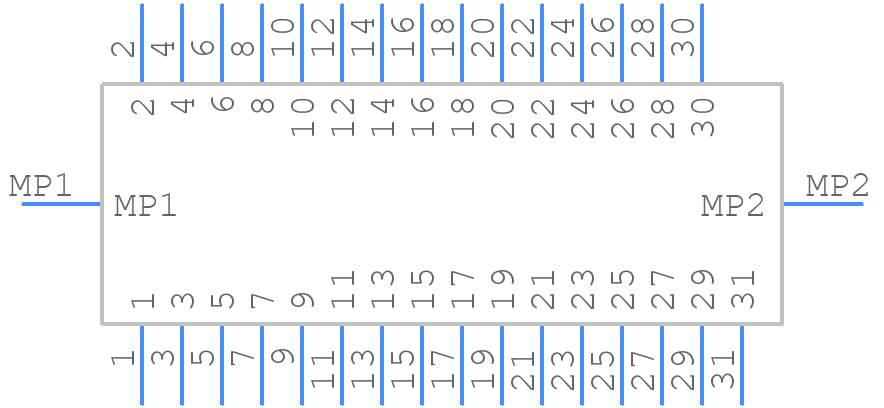

Symbol

click to zoom

PCB Footprints

FH26-31S-0.3SHW(05) - Hirose PCB footprint - Other - Other - FH26-31S-0.3SHW(05)-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FH26-31S-0.3SHW(05)
Part Number FH26-31S-0.3SHW(05)
Manufacturer Hirose
Pin Count 33
Part Category Connector
Package Category Other
Footprint Name Other - FH26-31S-0.3SHW(05)-2
Released Date Jan 11, 2023
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FH26-31S-0.3SHW(05) Details

Manufacturer Part Number:
FH26-31S-0.3SHW(05)
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
0
Additional Feature:
LOW PROFILE
Connector Type:
FFC/FPC CONNECTOR
Contact Finish Mating:
GOLD (1)
Contact Finish Termination:
Gold (Au)
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Contact Pitch:
0.012 inch
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
0.6 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
31
UL Flammability Code:
94V-0

FH26-31S-0.3SHW(05) Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific torque values.
Yes, the FH26-31S-0.3SHW(05) is designed to withstand vibrations and can be used in high-vibration environments. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific vibration testing and ratings.
The maximum operating temperature for the FH26-31S-0.3SHW(05) is 125°C. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific temperature ratings and derating information.
The FH26-31S-0.3SHW(05) has a IP67 rating, which means it can withstand temporary immersion in water and exposure to certain chemicals. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific environmental ratings and testing information.
The recommended mating cycle for the FH26-31S-0.3SHW(05) is 500 cycles. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific mating cycle ratings and testing information.

Trust Checks

Community Provided

System Verified

Community Approved

FH26-31S-0.3SHW(05) Overview

Use the download button to access the FH26-31S-0.3SHW(05) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FH26-, or try a keyword search, such as Headers and Edge Type Connectors
