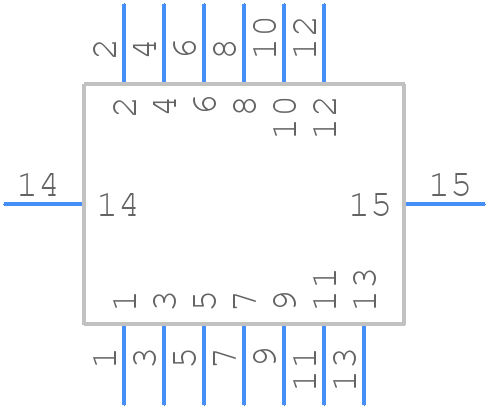

FH26W-13S-0.3SHW(99) - Hirose

FH26W-13S-0.3SHW(99) Details

• Manufacturer Part Number:

  FH26W-13S-0.3SHW(99)

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• Manufacturer:

  Hirose Electric Co Ltd

• YTEOL:

  0

• Additional Feature:

  STANDARD: IEC 61249-2-21, LOW PROFILE

• Board Mounting Option:

  SOLDER HOLDING POSTS

• Body Breadth:

  0.039 inch

• Body Depth:

  0.138 inch

• Body Length:

  0.213 inch

• Connector Type:

  FFC/FPC CONNECTOR

• Contact Finish Mating:

  GOLD (8) OVER NICKEL (197)

• Contact Finish Termination:

  GOLD (8) OVER NICKEL (197)

• Contact Gender:

  FEMALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  100 mΩ

• Contact Style:

  COMPRESSION

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  90VAC V

• Durability:

  10 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  YES

• Insertion Force-Max:

  ZIF N

• Insulation Resistance:

  50000000 Ω

• Insulator Color:

  BROWN

• Insulator Material:

  POLYAMIDE

• JESD-609 Code:

  e4

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.012 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.875 mm

• Rated Current (Signal):

  0.2 A

• Reference Standard:

  UL

• Terminal Pitch:

  0.6 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  13

• UL Flammability Code:

  94-HB

• Withdrawl Force-Min:

  ZIF N
