Part Image

FH26W-35S-0.3SHW(99) - Hirose

Description: Hirose FH26 Series 0.3mm Pitch 35 Way 2 Row Right Angle SMT Female FPC Connector, Gold Plated Contacts

Download FH26W-35S-0.3SHW(99) Model

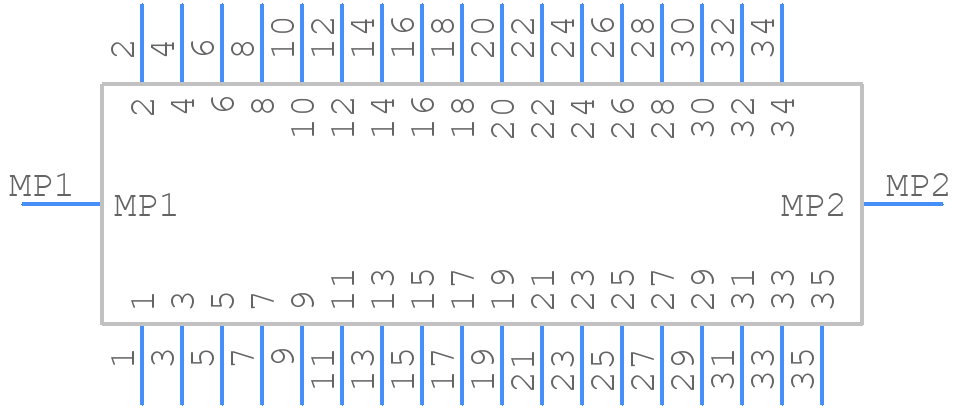

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FH26W-35S-0.3SHW(99) - Hirose PCB footprint - Other - Other - FH26W-35S-0.3SHW(99)-1
click to zoom
3D Models
FH26W-35S-0.3SHW(99) - Hirose  - 3D model - Other - FH26W-35S-0.3SHW(99)-1
click to zoom

FH26W-35S-0.3SHW(99) Details

  • Manufacturer Part Number:

    FH26W-35S-0.3SHW(99)

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HALOGEN FREE

  • Reach Compliance Code:

    unknown

  • ECCN Code:

    EAR99

  • Manufacturer:

    Hirose Electric Co Ltd

  • Risk Rank:

    9.44

  • Additional Feature:

    STANDARD: IEC 61249-2-21, LOW PROFILE

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    GOLD (8) OVER NICKEL (197)

  • Contact Finish Termination:

    GOLD (8) OVER NICKEL (197)

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    100 mΩ

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • Insertion Force-Max:

    ZIF N

  • Insulation Resistance:

    50000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.012 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • Rated Current (Signal):

    0.2 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.6 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    35

  • UL Flammability Code:

    94-HB

  • Withdrawl Force-Min:

    ZIF N

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FH26W-35S-0.3SHW(99) Overview

Use the download button to access the FH26W-35S-0.3SHW(99) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FH26W, or try a keyword search, such as Headers and Edge Type Connectors
