- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for FH26W-39S-0.3SHW(60)
- Part Number FH26W-39S-0.3SHW(60)
- Manufacturer Hirose
- Pin Count 41
- Part Category Connector
- Package Category Other
- Footprint Name Other - FH26W-39S-0.3SHW(60)-2
- Released Date Jun 18, 2020
- Last Modified Date Jan 31, 2024 1:22 PM UTC
- Pinout / Pin List Click Here (Member Only)
FH26W-39S-0.3SHW(60) Details
-
Manufacturer Part Number:
FH26W-39S-0.3SHW(60)
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Factory Lead Time:
85 Weeks
-
Manufacturer:
Hirose Electric Co Ltd
-
YTEOL:
7.3
-
Connector Type:
FFC/FPC CONNECTOR
FH26W-39S-0.3SHW(60) Frequently Asked Questions (FAQs)
-
The recommended torque value is 0.5 N·m to 1.5 N·m, but it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific guidance.
-
Yes, the FH26W-39S-0.3SHW(60) is designed to withstand vibrations and is suitable for use in high-vibration environments, but it's recommended to consult the datasheet and perform thorough testing to ensure reliability.
-
The operating temperature range for the FH26W-39S-0.3SHW(60) is -40°C to 105°C, but it's recommended to consult the datasheet for specific temperature ratings and derating information.
-
Yes, the FH26W-39S-0.3SHW(60) is compatible with lead-free soldering processes, but it's recommended to consult the datasheet and follow the recommended soldering profile to ensure reliability.
-
The mating cycle life of the FH26W-39S-0.3SHW(60) is 500 cycles, but it's recommended to consult the datasheet and perform thorough testing to ensure reliability in your specific application.
Trust Checks
Expert Contribution
System Verified
Community Approved
FH26W-39S-0.3SHW(60) Overview

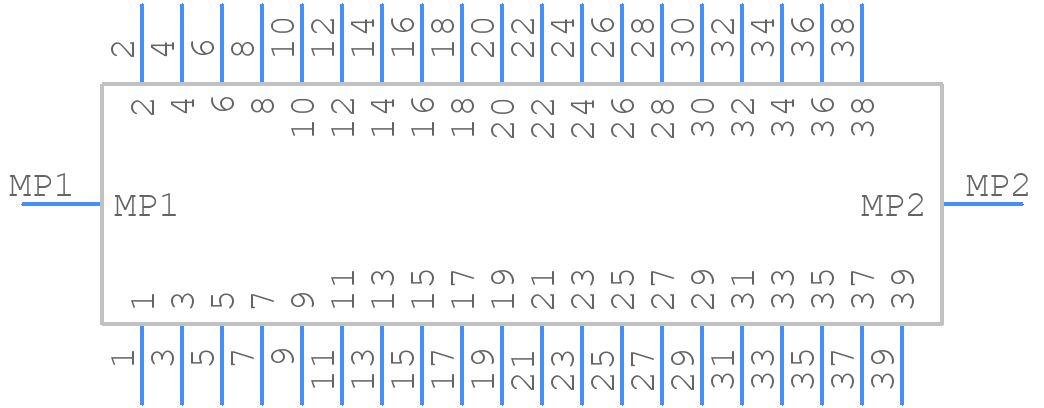

Use the download button to access the FH26W-39S-0.3SHW(60) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FH26W,
or try a keyword search, such as Headers and Edge Type Connectors
