FH33-26S-0.5SH(10) - Hirose

Description: 26 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle , 50V , 0.5A , -55°C ~ 85°C

Download FH33-26S-0.5SH(10) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

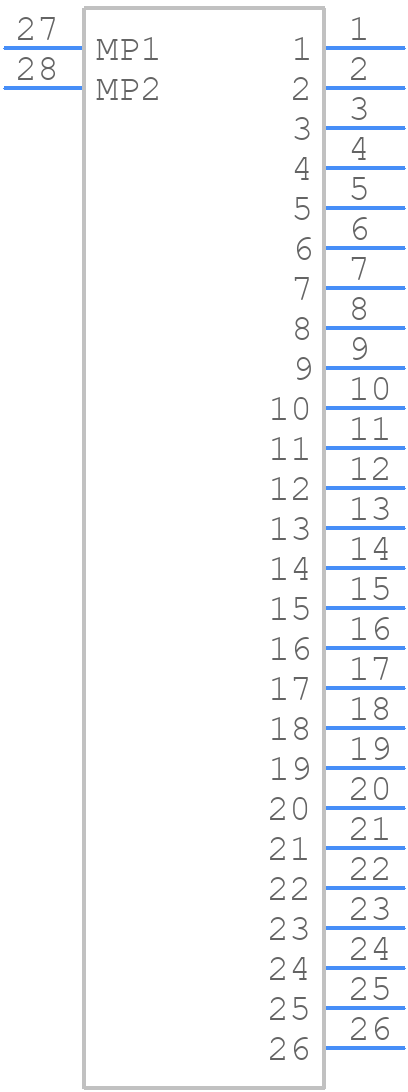

FH33-26S-0.5SH(10) - Hirose - PCB symbol
click to zoom
PCB Footprints
FH33-26S-0.5SH(10) - Hirose PCB footprint - Other - Other - FH33-26S-0.5SH(10)-3
click to zoom

FH33-26S-0.5SH(10) Details

  • Manufacturer Part Number:

    FH33-26S-0.5SH(10)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    35 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    6.65

  • Connector Type:

    FFC/FPC CONNECTOR
