The recommended torque for the screw terminals is 0.5 N·m to 1.0 N·m, as specified in the Hirose Electric Co Ltd's application notes.
Yes, the FH33J-18S-0.5SH(10) is designed to withstand vibrations up to 10 G (10-2000 Hz) and is suitable for use in high-vibration environments, such as in industrial or automotive applications.
The FH33J-18S-0.5SH(10) has a rating of IP67, which means it is protected against dust and water immersion up to 1 meter for 30 minutes. However, it is recommended to use additional sealing or protection measures for outdoor use to ensure long-term reliability.
The FH33J-18S-0.5SH(10) has an operating temperature range of -40°C to 105°C, making it suitable for use in a wide range of applications, including industrial, automotive, and consumer electronics.
The FH33J-18S-0.5SH(10) is designed to accommodate cables with a gauge range of AWG24 to AWG30. Using cables with gauges outside this range may affect the connector's performance and reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FH33J-18S-0.5SH(10) Overview

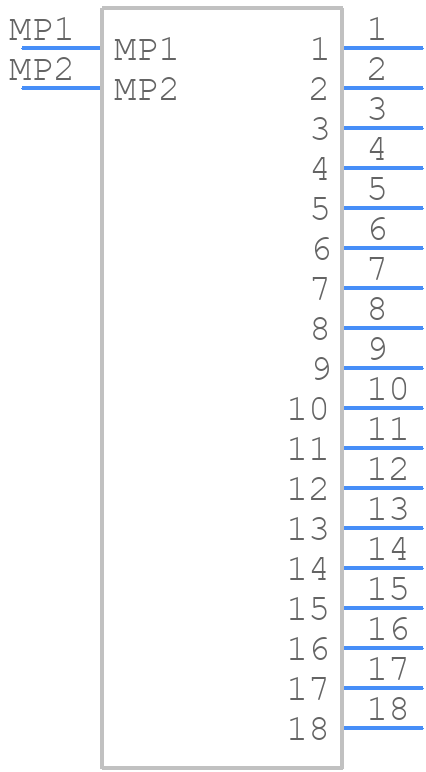

Use the download button to access the FH33J-18S-0.5SH(10) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FH33J,
or try a keyword search, such as Headers and Edge Type Connectors
