FH34SRJ-14S-0.5SH(99) - Hirose

Description: Hirose FH34SRJ 0.5mm Pitch 14 Way Straight SMT Female FPC Connector, ZIF Top and Bottom Contact

Download FH34SRJ-14S-0.5SH(99) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

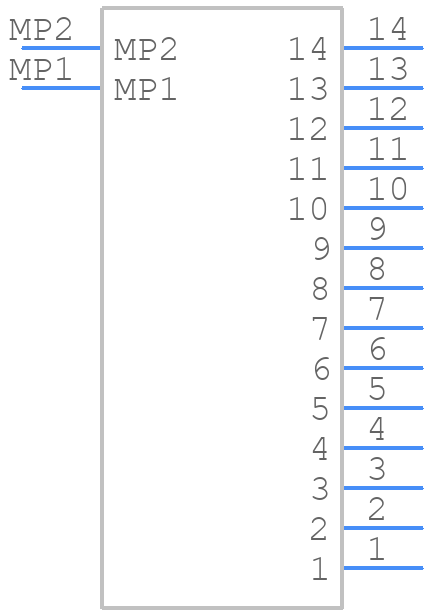

FH34SRJ-14S-0.5SH(99) - Hirose - PCB symbol
click to zoom
PCB Footprints
FH34SRJ-14S-0.5SH(99) - Hirose PCB footprint - Other - Other - FH34SRJ-14S-0.5SH(99)-1
click to zoom
3D Models
FH34SRJ-14S-0.5SH(99) - Hirose - 3D model - Other - FH34SRJ-14S-0.5SH(99)-1
click to zoom

FH34SRJ-14S-0.5SH(99) Details

  • Manufacturer Part Number:

    FH34SRJ-14S-0.5SH(99)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    7

  • Connector Type:

    FFC/FPC CONNECTOR

FH34SRJ-14S-0.5SH(99) Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 N·m to 1.0 N·m (0.37 lbf·in to 0.74 lbf·in) for the screw locks.
  • Yes, the FH34SRJ-14S-0.5SH(99) is designed to withstand vibrations and is suitable for use in high-vibration applications.
  • The operating temperature range for the FH34SRJ-14S-0.5SH(99) is -40°C to 105°C (-40°F to 221°F).
  • Yes, the FH34SRJ-14S-0.5SH(99) is compatible with lead-free soldering and meets the requirements of the RoHS directive.
  • The mating cycle rating for the FH34SRJ-14S-0.5SH(99) is 500 cycles.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FH34SRJ-14S-0.5SH(99) Overview

Use the download button to access the FH34SRJ-14S-0.5SH(99) schematic symbol, PCB footprint, and 3D model.
