FH50-40S-0.5SH - Hirose

Description: FFC & FPC Connectors

Download FH50-40S-0.5SH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

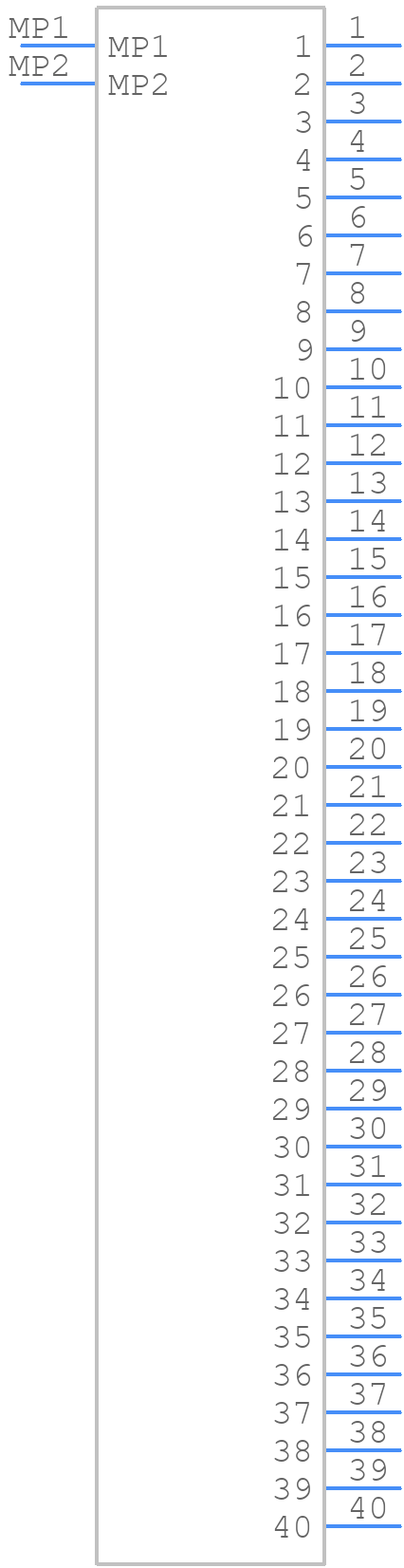

Symbol
FH50-40S-0.5SH - Hirose - PCB symbol
click to zoom
PCB Footprints
FH50-40S-0.5SH - Hirose PCB footprint - Other - Other - FH50-40S-0.5SH-2
click to zoom
3D Models
FH50-40S-0.5SH - Hirose - 3D model - Other - FH50-40S-0.5SH-2
click to zoom

FH50-40S-0.5SH Details

  • Manufacturer Part Number:

    FH50-40S-0.5SH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    42 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    7

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    100 mΩ

  • Dielectric Withstanding Voltage:

    150VAC V

  • Filter Feature:

    NO

  • Insulation Resistance:

    500000000 Ω

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mating Contact Pitch:

    0.019 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.508 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    40

FH50-40S-0.5SH Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in) for the screws on the FH50-40S-0.5SH connector.
  • Yes, the FH50-40S-0.5SH connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G acceleration.
  • Yes, the FH50-40S-0.5SH connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 105°C and humidity resistance of 90% RH at 40°C.
  • The mating cycle life of the FH50-40S-0.5SH connector is 500 cycles minimum.
  • Yes, the FH50-40S-0.5SH connector is RoHS and REACH compliant, meeting the requirements of EU directives 2011/65/EU and (EC) No 1907/2006.
