The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m. It's essential to follow the recommended torque to ensure reliable connections and prevent damage to the terminals.
Yes, the FH52-25S-0.5SH(99) is designed to withstand vibrations and can be used in high-vibration applications. However, it's essential to ensure proper mounting and secure connections to prevent damage or disconnection.
The FH52-25S-0.5SH(99) has a rating of IP67, which means it's protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and protection against environmental factors like UV, salt, and chemicals.
The FH52-25S-0.5SH(99) has an operating temperature range of -40°C to 105°C. It's essential to ensure that the connector is used within this temperature range to ensure reliable operation and prevent damage.
The FH52-25S-0.5SH(99) is designed for use with wires with a gauge of AWG24 to AWG30. Using a different wire gauge may affect the connector's performance and reliability. It's recommended to consult with Hirose Electric Co Ltd or a qualified engineer for guidance on using alternative wire gauges.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FH52-25S-0.5SH(99) Overview

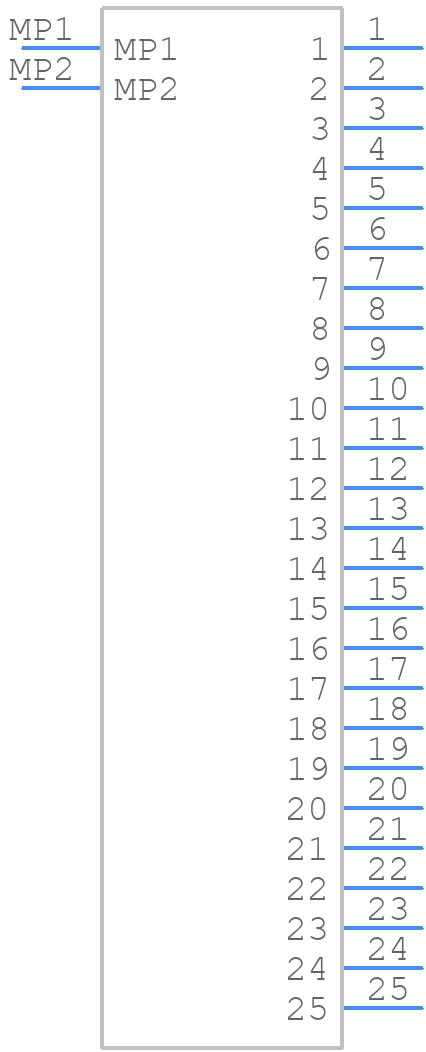

Use the download button to access the FH52-25S-0.5SH(99) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FH52-,
or try a keyword search, such as Headers and Edge Type Connectors
