The recommended torque for the screws on the FHP-07-01-T-S connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the FHP-07-01-T-S connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the FHP-07-01-T-S connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
Yes, the FHP-07-01-T-S connector is compatible with lead-free soldering processes. Samtec recommends following their guidelines for lead-free soldering and ensuring proper soldering techniques to ensure reliable connections.
The recommended mating cycle for the FHP-07-01-T-S connector is 500-1000 cycles according to Samtec's datasheet. However, this may vary depending on the specific application and environmental conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FHP-07-01-T-S Overview

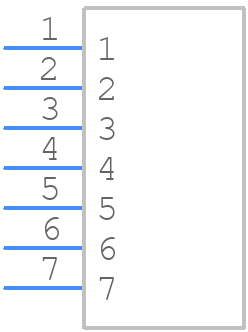

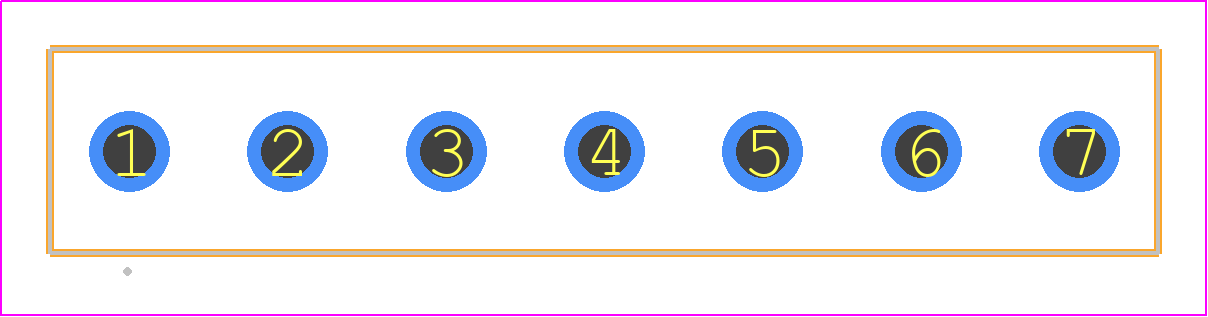

Use the download button to access the FHP-07-01-T-S schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FHP-0,
or try a keyword search, such as Power Connectors
