The recommended torque is 0.5-1.5 in-lbs (0.056-0.169 Nm) for the screws on the FHP-08-01-T-S connector, as specified in the Samtec application notes.
Yes, the FHP-08-01-T-S connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper mounting and screw torque to ensure reliable performance.
The FHP-08-01-T-S connector has an operating temperature range of -55°C to +125°C, making it suitable for a wide range of applications, including industrial, automotive, and aerospace.
Yes, the FHP-08-01-T-S connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for environmental sustainability and safety.
The FHP-08-01-T-S connector has a moisture-resistant design, but it's not fully waterproof. Samtec recommends applying a conformal coating or potting compound to protect the connector from moisture and humidity in harsh environments.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FHP-08-01-T-S Overview

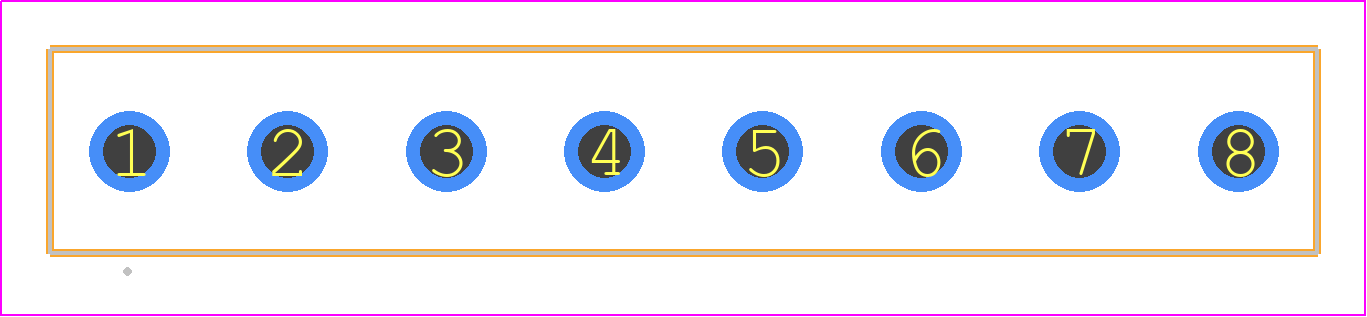

Use the download button to access the FHP-08-01-T-S schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FHP-0,
or try a keyword search, such as Power Connectors
