The recommended mating sequence is to mate the headers first, followed by the sockets. This ensures proper alignment and prevents damage to the connectors.
Yes, the FHP-10-01-H-S connector is designed to withstand high-vibration environments. However, it's recommended to follow Samtec's guidelines for vibration testing and to ensure proper mounting and securing of the connector.
The maximum operating temperature for the FHP-10-01-H-S connector is 125°C. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
The FHP-10-01-H-S connector is not designed for use in humid or wet environments. If exposure to moisture is unavoidable, it's recommended to use a connector with a waterproof or water-resistant coating, or to implement additional sealing measures.
The recommended torque for the FHP-10-01-H-S connector's screws is 0.5-1.5 in-lbs (0.056-0.169 Nm). Over-torquing can damage the connector or the PCB.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FHP-10-01-H-S Overview

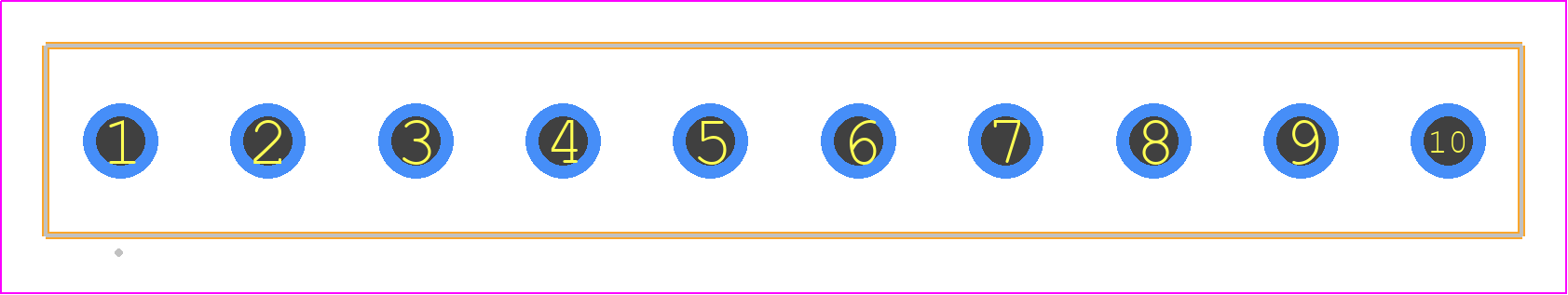

Use the download button to access the FHP-10-01-H-S schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FHP-1,
or try a keyword search, such as Headers and Edge Type Connectors
