FHP-10-02-T-S-LC footprint, schematic symbol and 3D model by SAMTEC

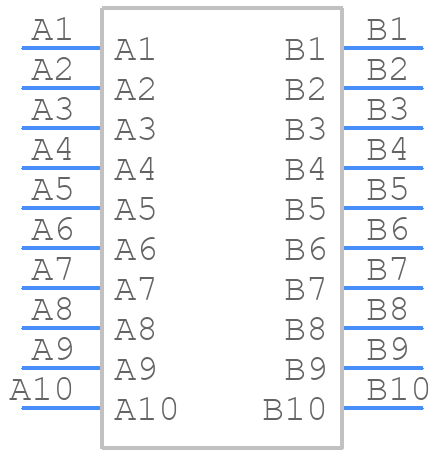

Symbol

click to zoom

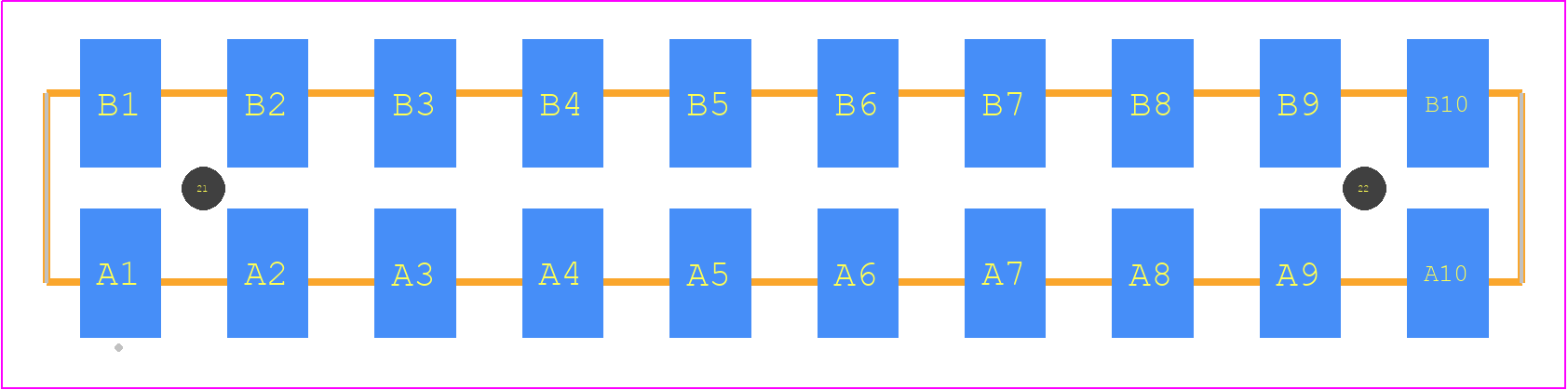

PCB Footprints

FHP-10-02-T-S-LC - SAMTEC PCB footprint - Other - Other - FHP-10-02-XX-S-LC

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FHP-10-02-T-S-LC
Part Number FHP-10-02-T-S-LC
Manufacturer SAMTEC
Pin Count 20
Part Category Connector
Package Category Other
Footprint Name Other - FHP-10-02-XX-S-LC
Released Date Jun 26, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FHP-10-02-T-S-LC Details

Manufacturer Part Number:
FHP-10-02-T-S-LC
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Costa Rica, Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
7
Body Breadth:
0.2 inch
Body Depth:
0.368 inch
Body Length:
1.56 inch
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Arrangement:
S0P10
Contact Finish Mating:
TIN OVER NICKEL
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
BERYLLIUM COPPER
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insertion Force-Max:
15.568 N
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
1
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Terminal Pitch:
3.96 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
10
Withdrawl Force-Min:
14.6784 N

FHP-10-02-T-S-LC Frequently Asked Questions (FAQs)

The recommended torque for the screws on the FHP-10-02-T-S-LC connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the FHP-10-02-T-S-LC connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the FHP-10-02-T-S-LC connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
The FHP-10-02-T-S-LC connector has a moisture-resistant design, but it's not fully waterproof. Samtec recommends applying a conformal coating or potting compound to protect the connector in humid or wet environments.
The mating cycle life of the FHP-10-02-T-S-LC connector is 500 cycles minimum according to Samtec's datasheet. However, this can vary depending on the application, environment, and usage.
