FHP-16-01-T-S footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

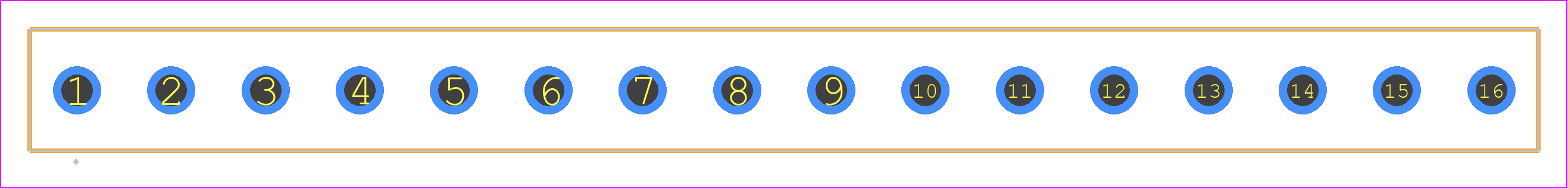

PCB Footprints

FHP-16-01-T-S - SAMTEC PCB footprint - Other - Other - FHP-16-01-X-S

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FHP-16-01-T-S
Part Number FHP-16-01-T-S
Manufacturer SAMTEC
Pin Count 16
Part Category Connector
Package Category Other
Footprint Name Other - FHP-16-01-X-S
Released Date Jun 19, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FHP-16-01-T-S Details

Manufacturer Part Number:
FHP-16-01-T-S
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Costa Rica, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
7
Body/Shell Style:
SOCKET
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
MATTE TIN OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
BERYLLIUM COPPER
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
16

FHP-16-01-T-S Frequently Asked Questions (FAQs)

The recommended torque is 2-3 in-lbs (0.2-0.3 Nm) for the screws that hold the connector in place.
Yes, the FHP-16-01-T-S is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, automotive, and industrial control systems.
The operating temperature range for the FHP-16-01-T-S is -55°C to 125°C (-65°F to 257°F).
Yes, the FHP-16-01-T-S is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
The FHP-16-01-T-S has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

FHP-16-01-T-S Overview

Use the download button to access the FHP-16-01-T-S schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FHP-1, or try a keyword search, such as Power Connectors
